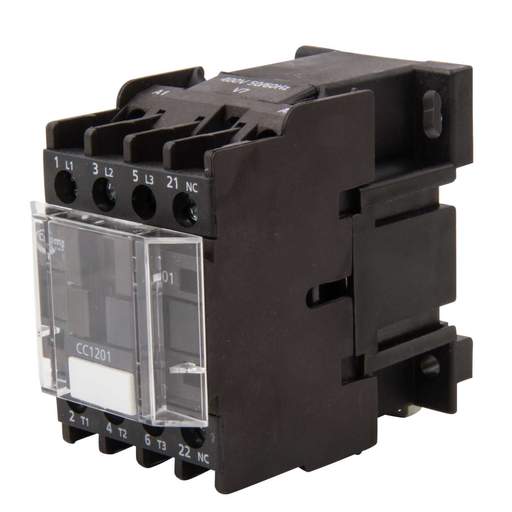

Crompton 7.5kW Contactor 3 NO Contacts 400V Coil 1 NC Aux
Part Code: CC1201 400V
Stock Code: 1037-1067
Crompton 7.5kW Contactor 3 NO Contacts 400V Coil 1 NC Aux
Part Code: CC1201 400V
Stock Code: 1037-1067
Features
- Simple and robust construction
- High mechanical and electrical life
- Coil fitted as standard
- For DIN rail or panel mounting
- Cage type cable terminals
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Auxiliary Contact
- 1 NC
- Coil Voltage
- 400V AC
- Colour
- Black
- Contact Configuration
- 3 NO
- Current Rating Ac1
- 25A
- Current Rating Ac3
- 18A
- Depth
- 80mm
- Dimensions
- (H)74 mm x (W)45 mm x (D)80 mm
- Frequency
- 50/60 Hz
- Full Load Current
- 15A
- Guarantee
- 1 Year
- Height
- 74mm
- Hp Rating
- 10metric hp
- Material
- Metal/Plastic
- Mounting
- DIN Rail / Screw Mounting
- Number of Poles
- 3 Pole
- Packaging Types
- Box
- Product Range
- CC Range
- Standards
- IEC 60947, EN 60947
- Unspsc V18
- 39121529
- Unspsc V24
- 39121529
- Weight
- 0.32600kg
- Width
- 45mm
- kW Rating
- 7.5kW
