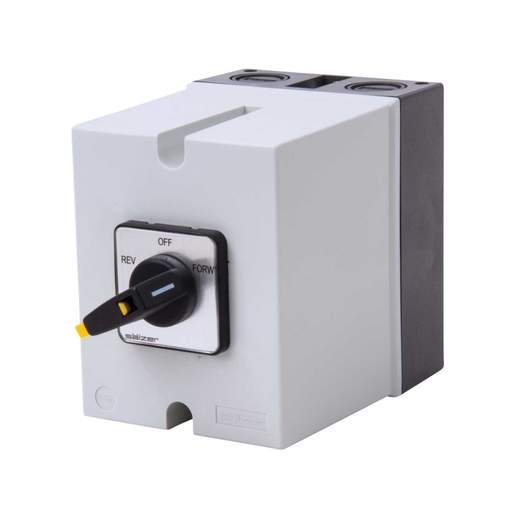

Salzer 32A 3 Pole 3 Position Reversing Switch IP66
- Part Code: 3P32AREVSM
- Stock Code: 0013-3447
- Insulated polycarbonate enclosure
- Padlockable for added security
- Knockout cable entries
- Switch ratings at AC21
- 3 position handle
- Forced open contacts
- Terminal screws in open position
Specification
| Brand | Salzer |
| Cable Capacity | 2.5mm² |
| Cable Entry | Knockout Cable Entries |
| Colour | Black/Grey |
| Current Rating | 32A |
| Depth | 133mm |
| Dimensions | (H)125 mm x (W)100 mm x (D)133 mm |
| Guarantee | 1 Year |
| Handle Colour | Black |
| Height | 125mm |
| IP Rating | IP66 |
| Lockable | Yes |
| Material | Polycarbonate |
| Mounting | Surface |
| Number of Knockouts | 4 |
| Number of Poles | 3 Pole |
| Number of Positions | 3 |
| Packaging Types | Box |
| Standards | IEC 60947 |
| Terminal Type | Screw |
| Unspsc V18 | 39122233 |
| Voltage Rating | 690V |
| Weight | 0.527kg |
| Width | 100mm |
-
