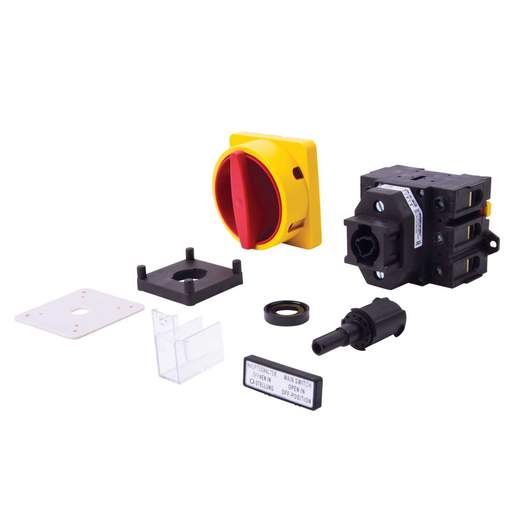

Salzer 100A 3P Rear Mounting Plastic Shaft Door Isolator Switch IP66
Part Code: 3P100ARMDI
Stock Code: 0013-3378
Salzer 100A 3P Rear Mounting Plastic Shaft Door Isolator Switch IP66
Part Code: 3P100ARMDI
Stock Code: 0013-3378
Features
- Door interlock with plastic shaft
- Padlockable for added security
- Four hole front mounting
- 90° switching angle
- Forced open contacts
- Terminal screws in open position
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Brand
- Salzer
- Colour
- Black/Red/Yellow
- Current Rating
- 100A
- Depth
- 102mm
- Dimensions
- (H)80 mm x (W)88 mm x (D)102 mm
- Guarantee
- 1 Year
- Height
- 80mm
- IP Rating
- IP66
- Lockable
- Yes
- Material
- Metal/Plastic
- Mounting
- Rear Panel Mounting
- Number of Poles
- 3 Pole
- Packaging Types
- Box
- Standards
- IEC 60947
- Terminal Type
- Screw
- Unspsc V18
- 39122217
- Unspsc V24
- 39122217
- Voltage Rating
- 690V
- Weight
- 0.56300kg
- Width
- 88mm
- kW Rating
- 37kW
