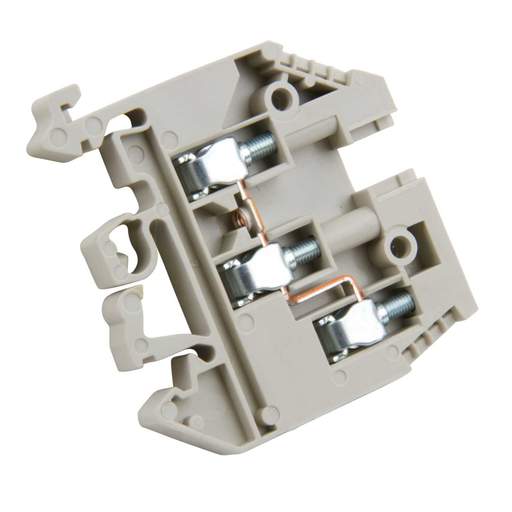

Wieland 4mm Double Deck Terminal 2 into 1
Part Code: WK4D1/2U
Stock Code: 0013-8517
Wieland 4mm Double Deck Terminal 2 into 1
Part Code: WK4D1/2U
Stock Code: 0013-8517
Features
- Duo feedthrough block 1/2 with screw connections
- For mounting on 35mm and 32mm DIN rail (top hat rail) and G-rail
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Colour
- Grey
- Current Rating
- 30A
- Dimensions
- (L)52.3 mm x (H)48.5 mm x (W)6 mm
- Guarantee
- 1 Year
- Height
- 48.5mm
- Length
- 52.3mm
- Material
- Thermoplastic
- Mounting
- DIN Rail / G-Rail
- Packaging Types
- Box
- Size
- 4mm²
- Standards
- EN 60947
- Type
- WK4D1/2U
- Unspsc V18
- 39121410
- Unspsc V24
- 39121410
- Voltage Rating
- 500V
- Weight
- 0.14000kg
- Width
- 6mm
