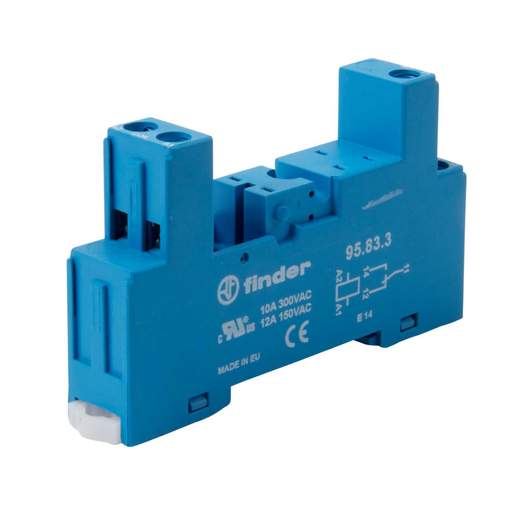

Finder 5 Pin Plug In Miniature Relay Base for 4031 Relays
Part Code: 9583
Stock Code: 0013-4179
Finder 5 Pin Plug In Miniature Relay Base for 4031 Relays
Part Code: 9583
Stock Code: 0013-4179
Features
- Socket for relay type 4031 (Series 40)
- Panel or 35mm DIN rail (EN 60715) mount
- Supplied with metal retaining clip
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Brand
- Finder
- Colour
- Blue
- Compliance
- CE, CSA, EAC, IMQ, RINA, UL
- Current Rating
- 10A
- Depth
- 46.8mm
- Dimensions
- (H)81.9 mm x (W)15.5 mm x (D)46.8 mm
- Guarantee
- 1 Year
- Height
- 81.9mm
- IP Rating
- IP20
- Maximum Operating Temperature
- 70°C
- Minimum Operating Temperature
- -40°C
- Mounting
- DIN Rail
- Number of Pins
- 5
- Packaging Types
- Each
- Product Range
- Series 95
- Standards
- EN 61984:2009, EN 60664-1:2007
- Suitable For
- Relay Type 4031 (Series 40)
- Supplied With
- Metal Retaining Clip
- Terminal Type
- Screw
- Unspsc V18
- 39122335
- Unspsc V24
- 39122335
- Voltage Rating
- 250V
- Weight
- 0.03400kg
- Width
- 15.5mm
