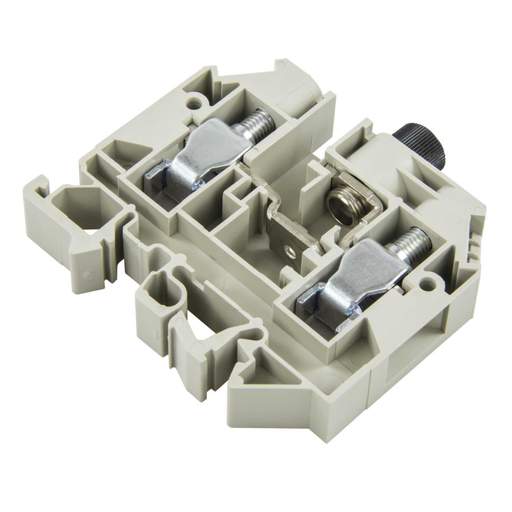

Wieland 10mm Fuse Terminal Grey (10A Max)
Part Code: WK10SI5X20
Stock Code: 0013-8487
Wieland 10mm Fuse Terminal Grey (10A Max)
Part Code: WK10SI5X20
Stock Code: 0013-8487
Features
- Fuse block with U-foot accepting G-fuse 5 x 20mm (10A max)
- For mounting on 35mm and 32mm DIN rail (top hat rail) and G-rail
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Colour
- Grey
- Current Rating
- 10A
- Dimensions
- (L)65 mm x (H)58.5 mm x (W)12 mm
- Guarantee
- 1 Year
- Height
- 58.5mm
- Length
- 65mm
- Material
- Thermoplastic
- Mounting
- DIN Rail / G-Rail
- Packaging Types
- Box
- Size
- 10mm²
- Standards
- EN 60947
- Type
- WK10SI5X20
- Unspsc V18
- 39121410
- Unspsc V24
- 39121410
- Voltage Rating
- 500V
- Weight
- 0.39000kg
- Width
- 12mm
