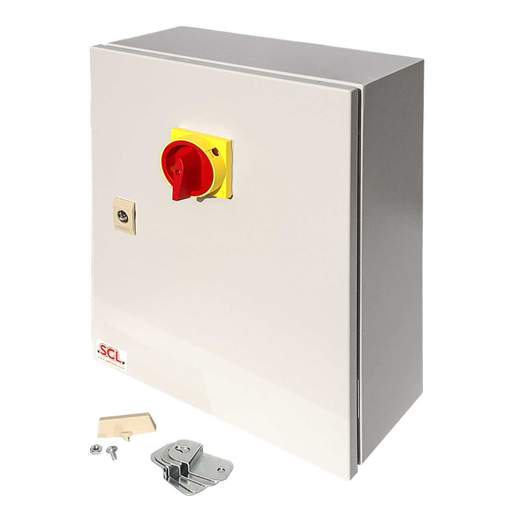

MCG 63A TP+N Switch Fuse with 2 Position Handle in a Metal Enclosure
Part Code: SF63TPN
Stock Code: 0013-7515
MCG 63A TP+N Switch Fuse with 2 Position Handle in a Metal Enclosure
Part Code: SF63TPN
Stock Code: 0013-7515
Features
- 4 Pole [3P+N] Fused Switch
- AC21A 690VAC
- Weather proof to IP65
- Door Interlocked Handle
- Padlockable in Off position
- IP20 Protected terminals
- Supplied with Fuses
- Bottom Gland Plate
- 3P+N Rotary Isolator
- 3P Fuse Holder fitted with Fuses
- RAL7035 IP65 Steel enclosure
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Cable Entry
- Removable Gland Plate
- Colour
- Light Grey
- Current Rating
- 63A
- Depth
- 195mm
- Dimensions
- (H)400 mm x (W)300 mm x (D)195 mm
- Door Type
- Hinged Door
- Finish
- Powder Coated
- Guarantee
- 1 Year
- Handle Type
- Door Interlocked Padlockable
- Height
- 400mm
- IP Rating
- IP65
- Lockable
- Yes
- Material
- Sheet Steel
- Mounting
- Surface
- Number of Poles
- Triple Pole and Neutral
- Packaging Types
- Box
- Standards
- IEC/EN 60947-3
- Unspsc V18
- 39121116
- Unspsc V24
- 39121116
- Voltage Rating
- 690V
- Weight
- 4.40000kg
- Width
- 300mm
