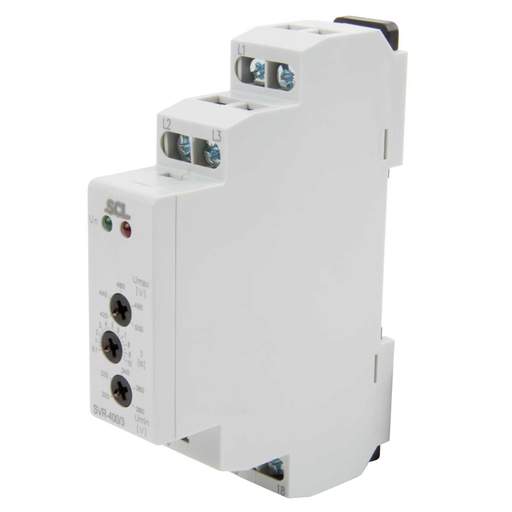

MCG 400V 3 Phase Under / Over Voltage Monitoring Relay
Part Code: SVR400-3
Stock Code: 0433-2031
MCG 400V 3 Phase Under / Over Voltage Monitoring Relay
Part Code: SVR400-3
Stock Code: 0433-2031
Features
- Supplied from monitored voltage
- Supplied from all 3 phases
- Monitors voltage in 3 phase set of voltage
- Upper and bottom voltage levels adjustable [output relay breaks]
- Adjustable time delay
- Red LED indication of fault
- Output contact: 1 x Changeover 8A/250V AC1
- Clamp terminals
- Mounted: DIN rail
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Changeover
- Yes
- Colour
- Grey
- Compliance
- CE
- Contact Configuration
- 1 CO
- Current Rating
- 8A
- Depth
- 64mm
- Dimensions
- (H)90 mm x (W)17.5 mm x (D)64 mm
- Guarantee
- 1 Year
- Height
- 90mm
- IP Rating
- IP40
- Indication Lamp
- Yes
- Maximum Operating Temperature
- 55°C
- Minimum Operating Temperature
- -20°C
- Mounting
- DIN Rail
- Number of Phases
- 3
- Packaging Types
- Box
- Standards
- EN 60255-6, EN 61010-1
- Suitable For
- Circuits 3 x 400V
- Unspsc V18
- 39122332
- Unspsc V24
- 39122332
- Weight
- 0.07500kg
- Width
- 17.5mm
