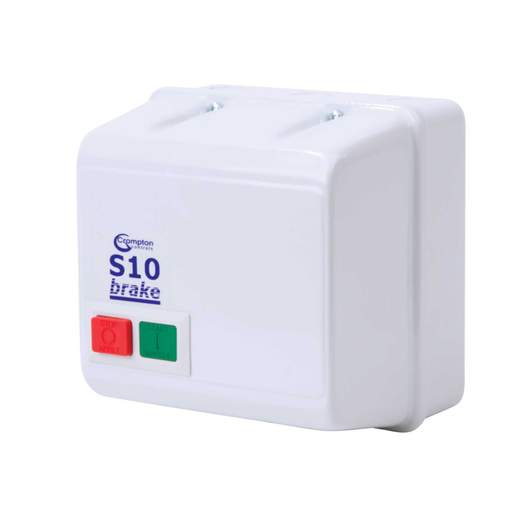

Crompton 2.2kW 415V DOL DC Injection Braking Unit 4 to 6A Overload
Part Code: 3DCM1EHS
Stock Code: 1033-2955
Crompton 2.2kW 415V DOL DC Injection Braking Unit 4 to 6A Overload
Part Code: 3DCM1EHS
Stock Code: 1033-2955
Features
- Start, protect and safely stop standard rotating machines
- Controlled stopping for compliance to PUWER 98
- IP55 dustproof pressed steel enclosure
- Suitable for up to 12 stops per hour
- Compact surface mounting enclosure for easy retrofitting
- Complete with integral start and stop pushbuttons
- Simple braking time and torque settings
- Cannot be used for instant motor stopping applications
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Approx.Full Load Current
- 4.5A
- Button Configuration
- Start / Stop
- Coil Voltage
- 415V
- Colour
- Light Grey RAL7035
- Compliance
- PUWER 98
- Depth
- 149mm
- Dimensions
- (H)184 mm x (W)184 mm x (D)149 mm
- Frequency
- 50/60 Hz
- Guarantee
- 1 Year
- Height
- 184mm
- Hp Rating
- 3metric hp
- IP Rating
- IP55
- Material
- Pressed Steel
- Mounting
- Surface
- Number of Phases
- 3
- Overload Rating
- 4 - 6A
- Packaging Types
- Box
- Product Range
- S10 Brake
- Standards
- BS 60947
- Suitable For
- Dimension and Circular Saws
- Type
- Direct On Line
- Unspsc V18
- 39121521
- Unspsc V24
- 39121521
- Weight
- 2.40000kg
- Width
- 184mm
- kW Rating
- 2.2kW
