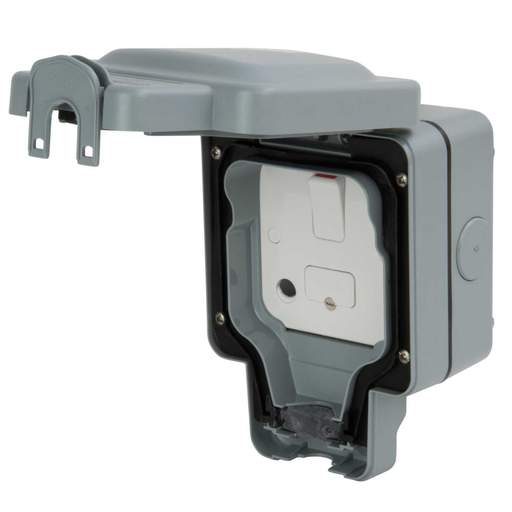

MK Masterseal Plus 13A DP Switched Fused Spur Weatherproof IP66 Grey
Part Code: K56410GRY
Stock Code: 1244-7832
MK Masterseal Plus 13A DP Switched Fused Spur Weatherproof IP66 Grey
Part Code: K56410GRY
Stock Code: 1244-7832
Delivery
Back in stock 22nd August
Features
- Ideal for gardens, workshops, industry, commercial, public areas, farm buildings, ponds pools etc
- Easy to install
- Fixed gasket
- Clearly marked top access angled terminals
- Push fit knockouts and conduit entries
- Rear drill holes
- Patented gel seal provides durable water and dust tight seal for improved protection
- Sealed when in use with virtually any standard 13A plug, including those with moulded top plugs
- Improved catch eases opening and closing during use
- Manufactured from recycled polycarbonate for impact protection and environmental protection
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Colour
- Grey
- Current Rating
- 13A
- Depth
- 89mm
- Dimensions
- (H)160 mm x (W)117 mm x (D)89 mm
- Fixing Centres
- 60.3mm
- Fuse Fitted
- Yes
- Guarantee
- 1 Year
- Height
- 160mm
- IP Rating
- IP66
- Material
- Recycled Polycarbonate
- Mounting
- Surface
- Number of Gangs
- 1
- Number of Poles
- Double Pole
- Packaging Types
- Each
- Product Range
- Masterseal Plus
- Standards
- BS EN 60529, BS 1363
- Switched Unswitched
- Switched
- Terminal Capacity Earth
- 3 x 2.5mm², 3 x 4mm², 2 x 6mm² (Standard)
- Type
- 13A 1 Gang Fused Weatherproof Socket
- Unspsc V18
- 39121704
- Unspsc V24
- 39121704
- Voltage Rating
- 230V
- Weight
- 0.01kg
- Width
- 117mm
