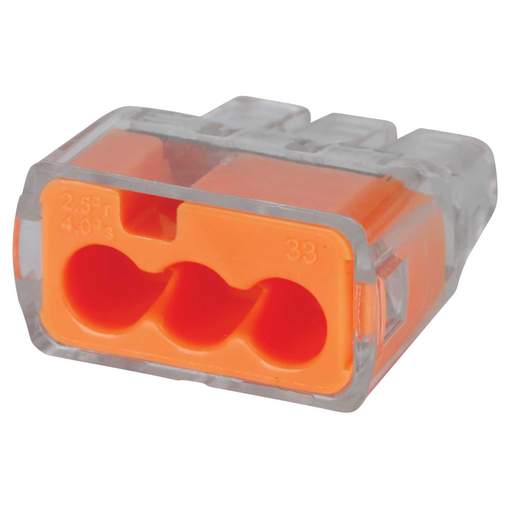

Ideal 3 Way Push In Connector Orange (Pack of 100)

Part Code: 30-1033

Stock Code: 1273-0645

Ideal 3 Way Push In Connector Orange (Pack of 100)

Part Code: 30-1033

Stock Code: 1273-0645

Delivery

1500 In Stock

Free delivery on orders over £50

£5.95 Delivery on orders under £50

Features

  • No-twist connection
  • Low insertion force for fast,easy application
  • Clear shell makes connection easy to inspect
  • UL Listed and CSA Certified
  • Rated to 600V maximum
  • Shell rated to 105° C
  • Compact size makes installation easy

Downloads

Specifications

All images and text, © Copyright City Electrical Factors Ltd
All images and text, © Copyright City Electrical Factors Ltd
Colour
Orange
Current Rating
32A
Depth
19.81mm
Dimensions
(H)9.65 mm x (W)17.53 mm x (D)19.81 mm
Guarantee
1 Year
Height
9.65mm
Maximum Operating Temperature
105°C
Number of Ways
3
Packaging Types
Box
Size
19.81mm x 17.53mm x 9.65mm
Standards
IEC 998; CSA C22
Unspsc V18
39121409
Voltage Rating
450V AC
Weight
0.246kg
Width
17.53mm
Wire Combination Range
Solid 0.75mm² to 4.0mm², Stranded 1.5mm² to 2.5mm²
