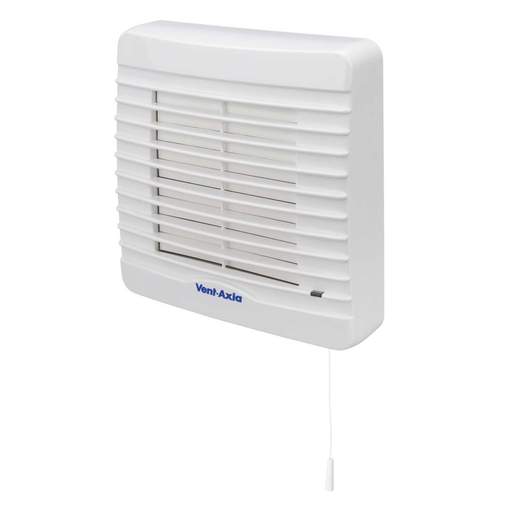

Vent Axia VA100XHP 100mm 4" Axial Auto Shutter Fan with Humidistat and Pullcord
Part Code: 251710
Stock Code: 1277-8513
Vent Axia VA100XHP 100mm 4" Axial Auto Shutter Fan with Humidistat and Pullcord
Part Code: 251710
Stock Code: 1277-8513
Features
- Designed for domestic bathrooms and toilets, available as window, wall or panel mounted
- shutter, timer or humidity controlled versions
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Airflow Cubic Metresper Hour
- 107 m³/h
- Airflow Litresper Second
- 30 l/s
- Automatic Shutter
- Yes
- Colour
- White
- Decibel Rating
- 36 dB[A] @ 3 m
- Depth
- 88mm
- Dimensions
- (H)155 mm x (W)155 mm x (D)88 mm
- Ducting Size
- 100mm
- Guarantee
- 2 Years
- Height
- 155mm
- Humidistat
- Yes
- Humidistat Range
- 40 - 95%
- IP Rating
- IPX4
- Maximum Operating Temperature
- 40°C
- Mounting
- Wall / Ceiling / Panel / Window
- Neon
- Yes
- Operation Type
- Pullcord + Humidistat
- Packaging Types
- Each
- Power Rating
- 18W
- Previously Known As
- 251710F
- Product Range
- Domestic Ventilation
- Safety Cut Out
- Standard Thermal Overload Protection (S.T.O.P)
- Suitable For
- Bathroom/Toilet
- Supplied With
- Pre-settable integral auto humidity control, thermo-electric shutter and pullcord
- Unspsc V18
- 40101502
- Unspsc V24
- 40101502
- Voltage Rating
- 230V
- Weight
- 0.69000kg
- Width
- 155mm
