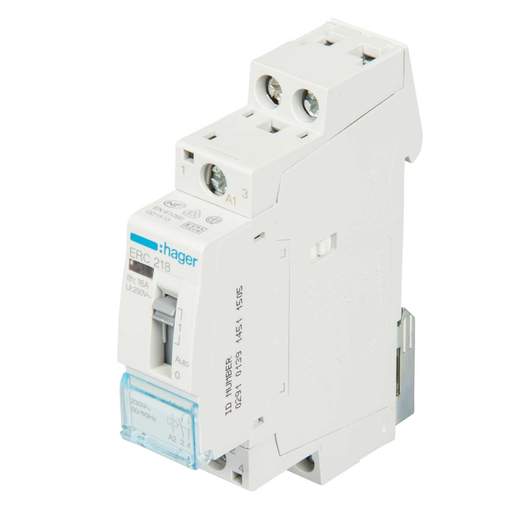

Hager 230V 50Hz Relay 1 NC + 1 NO Contacts
Part Code: ERC218
Stock Code: 1317-7849
Hager 230V 50Hz Relay 1 NC + 1 NO Contacts
Part Code: ERC218
Stock Code: 1317-7849
Features
- To provide control of low power circuits max 16A associated with push buttons switches time switches etc for remote control applications
- The relays will accept an auxiliary contact for remote signalling applications (ESC080) for the command of ELV circuits use interface relays EN145 and EN146
- For the command of high power circuits (20, 40 & 63 Amps) use contactors
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Coil Voltage
- 230V
- Contact Configuration
- 1 NO + 1 NC
- Current Rating
- 16A
- Depth
- 60mm
- Dimensions
- (H)83 mm x (W)18 mm x (D)60 mm
- Guarantee
- 2 Years
- Height
- 83mm
- Mounting
- DIN Rail
- Number of Modules
- 1
- Packaging Types
- Each
- Product Range
- Relays
- Unspsc V18
- 39121529
- Unspsc V24
- 39121529
- Voltage Rating
- 230V
- Weight
- 0.11792kg
- Width
- 18mm
