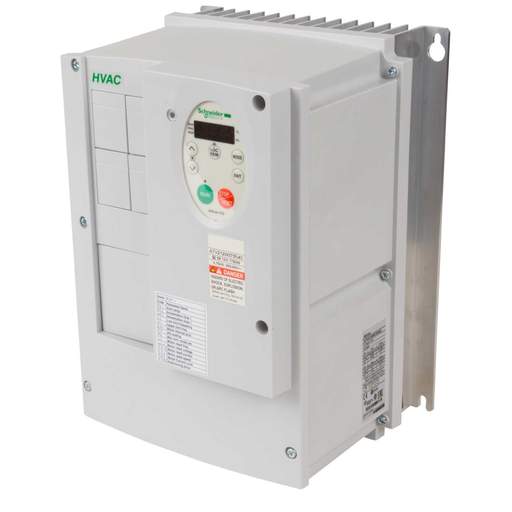

Schneider Altivar 480V 0.75kW Variable Speed Drive EMC C1
Part Code: ATV212W075N4C
Stock Code: 1338-2029
Schneider Altivar 480V 0.75kW Variable Speed Drive EMC C1
Part Code: ATV212W075N4C
Stock Code: 1338-2029
Features
- 3 Logic inputs
- 2 Analogue inputs
- 1 Analogue output
- 2 Relay outputs
- Integrated 4 digit, 7 segment LED display with 7 button keypad
- RJ45 Modbus port
- Removable terminal block for software communications protocols: BACnet, Modbus, Metasys, N2 and Apogee PI
- Integrated Class 2 EMC filter for radiated and conducted emissions, IEC 61800-3, category C1
- Heat Sink
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Brand
- Schneider Altivar
- Current Rating
- 1.4A
- Depth
- 192mm
- Dimensions
- (H)297 mm x (W)215 mm x (D)192 mm
- Frequency
- 50/60 Hz
- Guarantee
- 18 Months
- Height
- 297mm
- IP Rating
- IP55
- Number of Phases
- 3
- Packaging Types
- Each
- Power Rating
- 0.75kW
- Standards
- EN 55011, EN 61800
- Unspsc V18
- 39122002
- Unspsc V24
- 39122002
- Voltage Rating
- 480V
- Weight
- 7.25400kg
- Width
- 215mm
