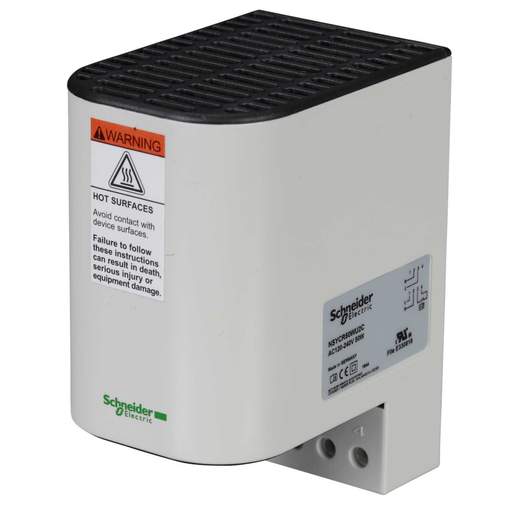

Schneider ClimaSys 50W 110 - 250V Insulated PTC Enclosure Heater
Part Code: NSYCR50WU2C
Stock Code: 1017-0535
Schneider ClimaSys 50W 110 - 250V Insulated PTC Enclosure Heater
Part Code: NSYCR50WU2C
Stock Code: 1017-0535
Features
- Ambient air temperature for operation -40 - 70°C
- Vertical operating position, mounted on 35mm DIN rail
- Heater must be installed with a thermal controller

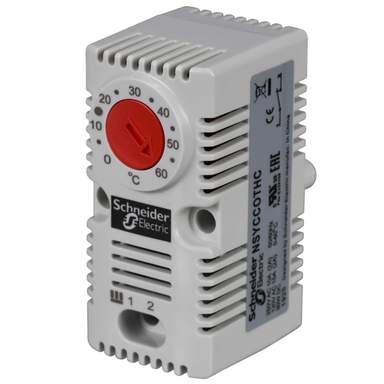

- Compatible thermal controller part number NSYCCOTHC or NSYCCOTHO
- 4 x 2.5mm² screw terminals
- Class ll insulated
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Class Type
- Class 2
- Depth
- 90mm
- Dimensions
- (H)110 mm x (W)60 mm x (D)90 mm
- Frequency
- 50/60 Hz
- Guarantee
- 18 Months
- Height
- 110mm
- IP Rating
- IP20
- Material
- Extruded Aluminum / Plastic Cover
- Mounting
- DIN Rail
- Operating Voltage Range
- 110 - 250V
- Packaging Types
- Each
- Power Rating
- 50W
- Product Range
- ClimaSys CR
- Unspsc V18
- 39121321
- Unspsc V24
- 39121321
- Weight
- 0.33600kg
- Width
- 60mm
