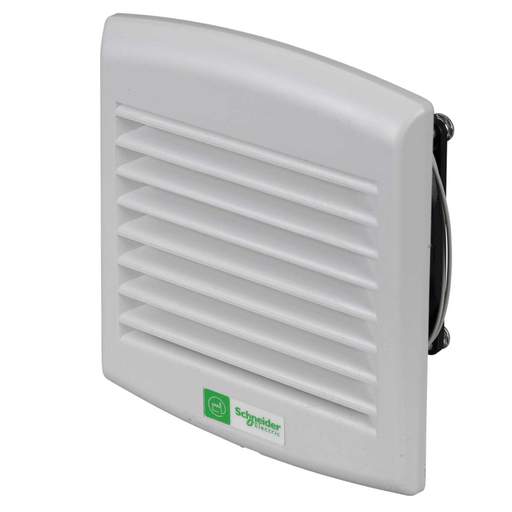

Schneider ClimaSys 137mm x 117mm 38m³/h 230V Vent with Outlet Grille IP54
Part Code: NSYCVF38M230PF
Stock Code: 1017-1006
Schneider ClimaSys 137mm x 117mm 38m³/h 230V Vent with Outlet Grille IP54
Part Code: NSYCVF38M230PF
Stock Code: 1017-1006
Features
- G2 filter fan
- 38 m³/h free flow rate with standard filter
- Ball bearing
- Cut-out 92mm x 92mm
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Airflow Cubic Metresper Hour
- 38 m³/h
- Colour
- Light Grey RAL7035
- Decibel Rating
- 41 dB[A]
- Depth
- 49mm
- Dimensions
- (H)137 mm x (W)117 mm x (D)49 mm
- Frequency
- 50/60 Hz
- Guarantee
- 18 Months
- Height
- 137mm
- IP Rating
- IP54
- Material
- ASA / Polycarbonate
- Mounting
- Enclosure
- Packaging Types
- Each
- Power Rating
- 4.5W
- Product Range
- ClimaSys
- Supplied With
- Axial Motor, 2 x Protective Grilles [Front and Rear Surfaces], Filter, Outlet grille [Front] and Cut-out Template
- Unspsc V18
- 39121321
- Unspsc V24
- 39121321
- Voltage Rating
- 230V
- Weight
- 0.29200kg
- Width
- 117mm
