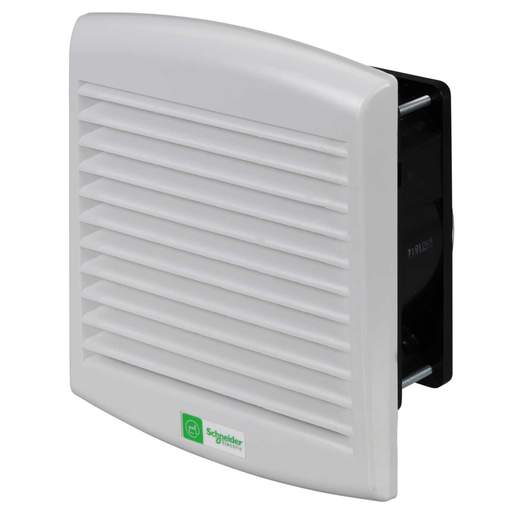

Schneider ClimaSys 170mm x 150mm 85m³/h 230V Vent with Outlet Grille IP54
Part Code: NSYCVF85M230PF
Stock Code: 1017-1051
Schneider ClimaSys 170mm x 150mm 85m³/h 230V Vent with Outlet Grille IP54
Part Code: NSYCVF85M230PF
Stock Code: 1017-1051
Features
- G2 filter fan
- 85 m³/h free flow rate with standard filter
- Ball bearing
- Cut-out 125mm x 125mm
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Airflow Cubic Metresper Hour
- 85 m³/h
- Colour
- Light Grey RAL7035
- Decibel Rating
- 49 dB[A]
- Depth
- 62mm
- Dimensions
- (H)170 mm x (W)150 mm x (D)62 mm
- Frequency
- 50/60 Hz
- Guarantee
- 18 Months
- Height
- 170mm
- IP Rating
- IP54
- Material
- ASA / Polycarbonate
- Mounting
- Enclosure
- Packaging Types
- Each
- Power Rating
- 15W
- Product Range
- ClimaSys
- Supplied With
- Axial Motor, 2 x Protective Grilles [Front and Rear Surfaces], Filter, Outlet grille [Front], Power Cord and Cut-out Template
- Unspsc V18
- 39121321
- Unspsc V24
- 39121321
- Voltage Rating
- 230V
- Weight
- 0.91100kg
- Width
- 150mm
