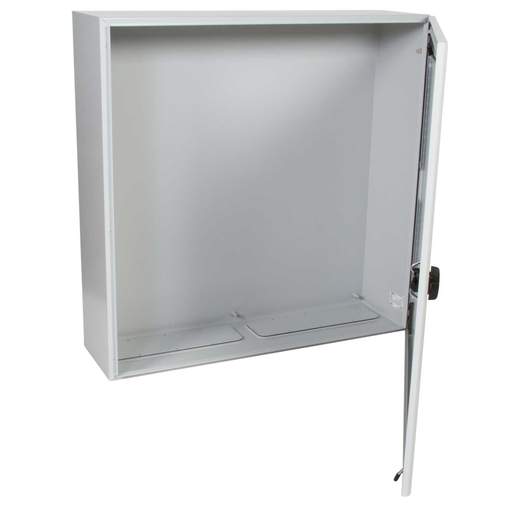

Schneider PanelSet 1000mm x 1000mm x 300mm Steel Enclosure IP66
Part Code: NSYS3D101030
Stock Code: 1017-5182
Schneider PanelSet 1000mm x 1000mm x 300mm Steel Enclosure IP66
Part Code: NSYS3D101030
Stock Code: 1017-5182
Features
- Mounting plate not supplied, to be ordered separately

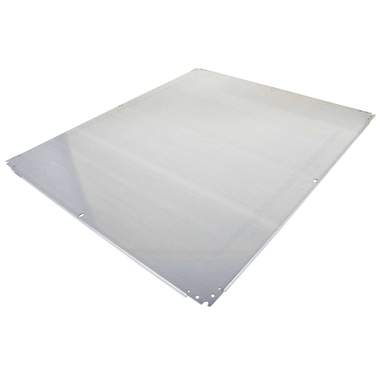

- Steel mounting plate part number is NSYMM1010
- Steel perforated mounting plate part number is NSYMR1010
- Gutter shaped front rail double sheet thickness single piece body
- Door reversible 120°
- Steel with a Epoxy Polyester Powder
- IP55
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Colour
- Light Grey RAL7035
- Depth
- 300mm
- Dimensions
- (H)1000 mm x (W)1000 mm x (D)300 mm
- Finish
- Epoxy Polyester Powder Coated
- Gland Plates
- Yes
- Guarantee
- 18 Months
- Height
- 1000mm
- IP Rating
- IP66
- Lid Type
- Reversible
- Lockable
- Yes
- Material
- Steel
- Mounting Plates
- No
- Packaging Types
- Each
- Product Range
- Steel Enclosures
- Size
- 1000mm x 1000mm x 300mm
- Standards
- IEC 62208
- Suitable Mounting Plate
- NSYMM1010
- Suitable Perforated Mounting Plate
- NSYMR1010
- Unspsc V18
- 39121324
- Unspsc V24
- 39121324
- Weight
- 46.00000kg
- Width
- 1000mm
