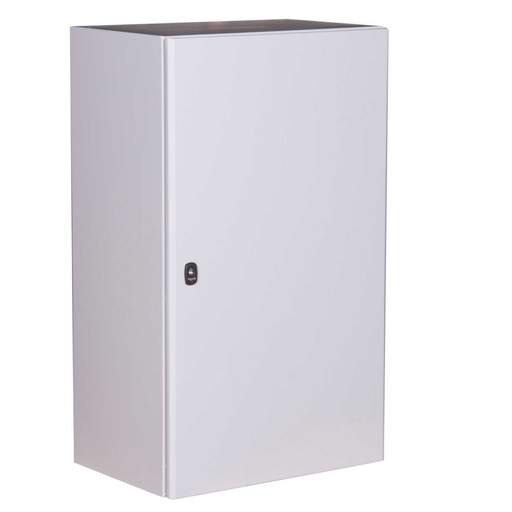

Schneider PanelSet 1000mm x 600mm x 400mm Steel Enclosure IP66
Part Code: NSYS3D10640
Stock Code: 1017-5230
Schneider PanelSet 1000mm x 600mm x 400mm Steel Enclosure IP66
Part Code: NSYS3D10640
Stock Code: 1017-5230
Features
- Mounting plate not supplied, to be ordered separately
- Steel mounting plate part number is NSYMM106
- Steel perforated mounting plate part number is NSYMR106
- Reversible door opening 120°
- Without mounting plate
- Standard gland plate
- RAL 7035 grey colour
- IP66 rated
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Colour
- Light Grey RAL7035
- Depth
- 400mm
- Dimensions
- (H)1000 mm x (W)600 mm x (D)400 mm
- Finish
- Epoxy Polyester Powder Coated
- Gland Plates
- Yes
- Guarantee
- 18 Months
- Height
- 1000mm
- IP Rating
- IP66
- Lockable
- Yes
- Material
- Steel
- Mounting
- Surface
- Mounting Plates
- No
- Packaging Types
- Each
- Product Range
- Spacial S3D
- Size
- 1000mm x 600mm x 400mm
- Standards
- IEC 62208
- Suitable Mounting Plate
- NSYMM106
- Suitable Perforated Mounting Plate
- NSYMR106
- Type
- Compact Enclosure
- Unspsc V18
- 39121324
- Unspsc V24
- 39121324
- Weight
- 34.92100kg
- Width
- 600mm
