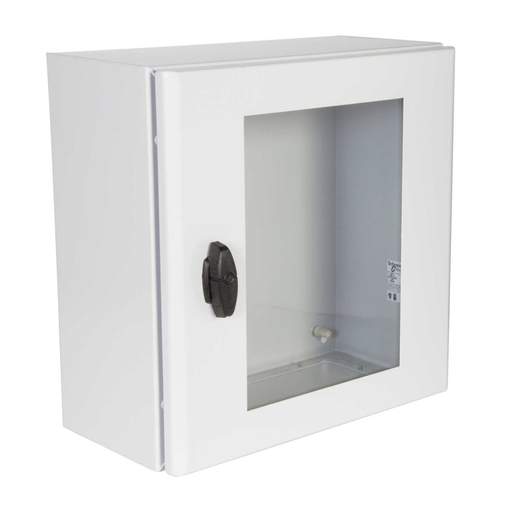

Schneider PanelSet 400mm x 400mm x 200mm Steel Enclosure Glazed Door IP66
Part Code: NSYS3D4420T
Stock Code: 1017-5419
Schneider PanelSet 400mm x 400mm x 200mm Steel Enclosure Glazed Door IP66
Part Code: NSYS3D4420T
Stock Code: 1017-5419
Features
- Mounting plate not supplied, to be ordered separately
- Steel mounting plate part number is NSYMM44
- Steel perforated mounting plate part number is NSYMR44
- Reversible door opening 120°
- Without mounting plate
- Standard gland plate
- IP66 rated
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Colour
- Light Grey RAL7035
- Depth
- 200mm
- Dimensions
- (H)400 mm x (W)400 mm x (D)200 mm
- Finish
- Epoxy Polyester Powder Coated
- Gland Plates
- Yes
- Guarantee
- 18 Months
- Height
- 400mm
- IP Rating
- IP66
- Lockable
- Yes
- Material
- Steel
- Mounting
- Surface
- Mounting Plates
- No
- Packaging Types
- Each
- Product Range
- Spacial S3D
- Size
- 400mm x 400mm x 200mm
- Standards
- IEC 62208
- Suitable Mounting Plate
- NSYMM44
- Suitable Perforated Mounting Plate
- NSYMR44
- Type
- Compact Enclosure
- Unspsc V18
- 39121324
- Unspsc V24
- 39121324
- Weight
- 7.10000kg
- Width
- 400mm
