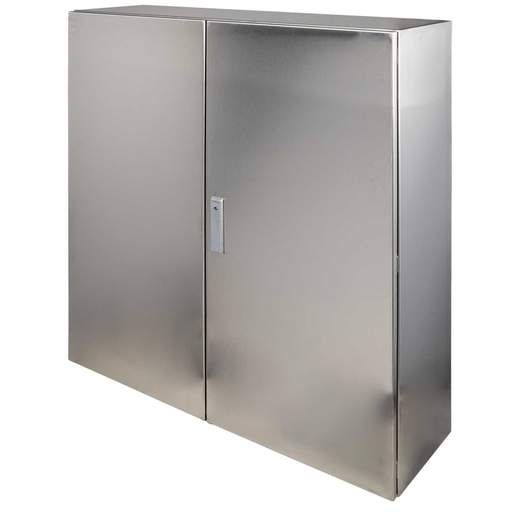

Schneider PanelSet 1000mm x 1000mm x 300mm Stainless Steel Enclosure IP55
Part Code: NSYS3X101030
Stock Code: 1017-5746
Schneider PanelSet 1000mm x 1000mm x 300mm Stainless Steel Enclosure IP55
Part Code: NSYS3X101030
Stock Code: 1017-5746
Features
- Suitable for the chemical, petrochemical and agrofoods industries
- Manufactured in AISI 304 stainless steel
- Twin plain doors
- 3mm double-bar lock
- Stainless steel hinges screwed to the body of the enclosure
- Polyurethane gasket
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Depth
- 300mm
- Dimensions
- (H)1000 mm x (W)1000 mm x (D)300 mm
- Door Type
- Hinged Door
- Finish
- Brushed Stainless Steel
- Gland Plates
- No
- Guarantee
- 18 Months
- Height
- 1000mm
- IP Rating
- IP55
- Ik Rating
- IK10
- Lockable
- Yes
- Material
- AISI 304L Stainless Steel
- Mounting
- Wall
- Mounting Plates
- No
- Packaging Types
- Each
- Product Range
- Spacial
- Size
- 1000mm x 1000mm x 300mm
- Standards
- IEC 62208
- Suitable Mounting Plate
- NSYMM1010
- Suitable Perforated Mounting Plate
- NSYMR1010
- Unspsc V18
- 39121324
- Unspsc V24
- 39121324
- Weight
- 47.00000kg
- Width
- 1000mm
