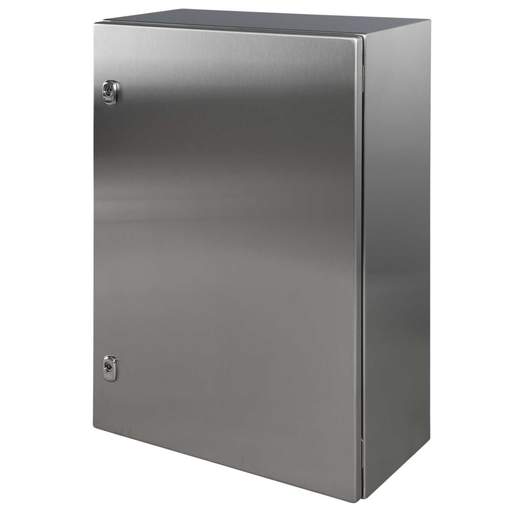

Schneider PanelSet 700mm x 500mm x 250mm Stainless Steel Enclosure IP66
Part Code: NSYS3X7525
Stock Code: 1017-5842
Schneider PanelSet 700mm x 500mm x 250mm Stainless Steel Enclosure IP66
Part Code: NSYS3X7525
Stock Code: 1017-5842
Features
- Suitable for the Chemical, Petrochemical and Agrofoods Industries
- Manufactured in AISI 304 Stainless Steel
- Single plain door
- Standard lock with 3mm double-bar lock
- Stainless steel hinges screwed to the body of the enclosure
- Polyurethane gasket
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Depth
- 250mm
- Dimensions
- (H)700 mm x (W)500 mm x (D)250 mm
- Door Type
- Hinged Door
- Finish
- Brushed Stainless Steel
- Gland Plates
- No
- Guarantee
- 18 Months
- Height
- 700mm
- IP Rating
- IP66
- Ik Rating
- IK10
- Lockable
- Yes
- Material
- AISI 304L Stainless Steel
- Mounting
- Wall
- Mounting Plates
- No
- Packaging Types
- Each
- Product Range
- Spacial
- Size
- 700mm x 500mm x 250mm
- Standards
- IEC 62208
- Suitable Mounting Plate
- NSYMM75
- Suitable Perforated Mounting Plate
- NSYMR75
- Unspsc V18
- 39121324
- Unspsc V24
- 39121324
- Weight
- 17.40000kg
- Width
- 500mm
