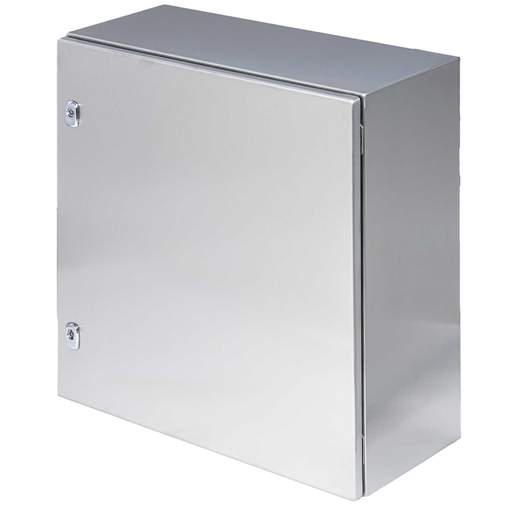

Schneider PanelSet 800mm x 800mm x 300mm Stainless Steel Enclosure IP66
Part Code: NSYS3X8830
Stock Code: 1017-5860
Schneider PanelSet 800mm x 800mm x 300mm Stainless Steel Enclosure IP66
Part Code: NSYS3X8830
Stock Code: 1017-5860
Features
- Suitable for the Chemical, Petrochemical and Agrofoods Industries
- Manufactured in AISI 304 Stainless Steel
- Single plain door
- Standard lock with 3mm double-bar lock
- Stainless steel hinges screwed to the body of the enclosure
- Polyurethane gasket
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Depth
- 300mm
- Dimensions
- (H)800 mm x (W)800 mm x (D)300 mm
- Finish
- Brushed Stainless Steel
- Gland Plates
- No
- Guarantee
- 18 Months
- Height
- 800mm
- IP Rating
- IP66
- Lockable
- Yes
- Material
- AISI 304L Stainless Steel
- Mounting
- Wall
- Mounting Plates
- No
- Packaging Types
- Each
- Product Range
- Spacial
- Size
- 800mm x 800mm x 300mm
- Standards
- IEC 62208
- Suitable Mounting Plate
- NSYMM88

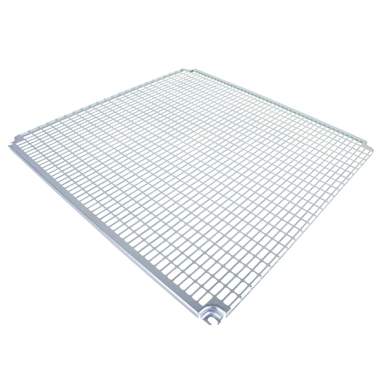

- Suitable Perforated Mounting Plate
- NSYMR88
- Unspsc V18
- 39121324
- Unspsc V24
- 39121324
- Weight
- 32.00000kg
- Width
- 800mm
