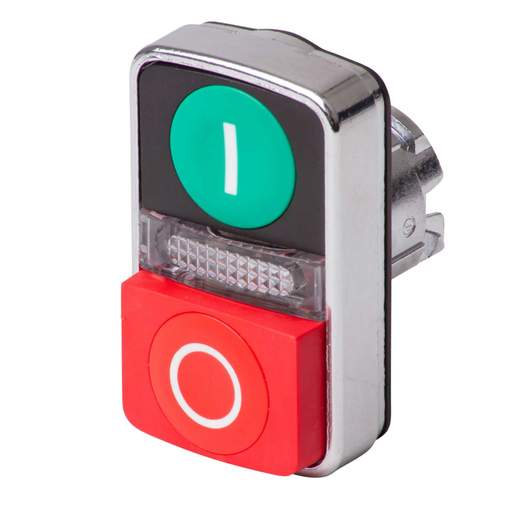

Schneider Harmony Flush Start / Projecting Stop Illuminated Momentary Pushbutton
Part Code: ZB4BW7L3741
Stock Code: 1340-6179
Schneider Harmony Flush Start / Projecting Stop Illuminated Momentary Pushbutton
Part Code: ZB4BW7L3741
Stock Code: 1340-6179
Features
- Head for illuminated double-headed pushbutton
- 22mm mounting diameter
- Spring return operator
- Part of Harmony XB4 range
- Rectangular signalling unit head
- Product compatibility : integral LED
- 1 flush, 1 projecting pushbutton, 1 central light operator profile
- Operator's description : Green "I" - red "O"
- Chromium plated metal bezel
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Button Profile
- 1 Flush 1 Projecting
- Colour
- Green/Red
- Cut Out
- 22mm
- Depth
- 30mm
- Dimensions
- (H)50 mm x (W)30 mm x (D)30 mm
- Guarantee
- 18 Months
- Height
- 50mm
- IP Rating
- IP69
- Illuminated
- Yes
- Legend
- 1" and "0"
- Mounting
- Panel
- Operation Type
- Spring Return
- Packaging Types
- Each
- Product Range
- Harmony XB4-B and ZB4-B
- Standards
- EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, EN/IEC 60947-5-5
- Unspsc V18
- 39122216
- Unspsc V24
- 39122216
- Weight
- 0.05700kg
- Width
- 30mm
