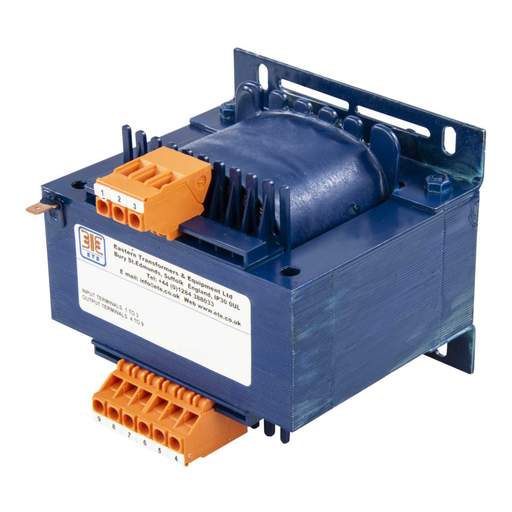

MCG 230V / 415V Input to 12V / 230V Output 300VA Panel transformer
Part Code: CCT/300
Stock Code: 1412-8555
MCG 230V / 415V Input to 12V / 230V Output 300VA Panel transformer
Part Code: CCT/300
Stock Code: 1412-8555
Features
- Reliable operation, compact design, safe wiring with a wide range of applications
- Multi tap secondary
- Centre tap primary
- Insulation between windings
- Short duration surge load capacity
- Varnish impregnated windings
- Touch-proof terminals
- Suitable for panel mounting only
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Colour
- Steel Grey
- Compliance
- q
- Depth
- 125mm
- Dimensions
- (H)150 mm x (W)130 mm x (D)125 mm
- Frequency
- 50/60 Hz
- Guarantee
- 1 Year
- Height
- 150mm
- Mounting
- Panel
- Packaging Types
- Box
- Standards
- IEC/EN 61558, Q/ZT258
- Unspsc V18
- 39121002
- Unspsc V24
- 39121002
- Va Rating
- 300VA
- Voltage Input
- 230V 415V
- Voltage Output(Secondary)
- 12V, 24V, 48V, 110V or 240V
- Weight
- 5.17000kg
- Width
- 130mm
