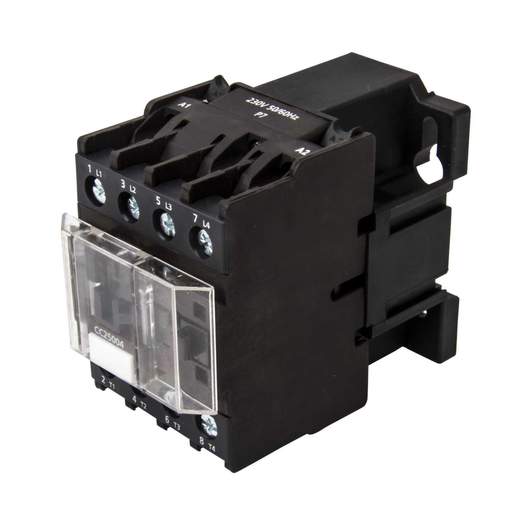

Crompton 11kW Contactor 4 NO Contacts 230V Coil
Part Code: CC2540 230V
Stock Code: 1434-9397
Crompton 11kW Contactor 4 NO Contacts 230V Coil
Part Code: CC2540 230V
Stock Code: 1434-9397
Features
- Simple and robust construction
- High mechanical and electrical life
- Coil fitted as standard
- For DIN rail or panel mounting
- Cage type cable terminals
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Coil Voltage
- 230V AC
- Colour
- Black
- Contact Configuration
- 4 NO
- Current Rating Ac1
- 40A
- Current Rating Ac3
- 25A
- Depth
- 93mm
- Dimensions
- (H)84 mm x (W)56 mm x (D)93 mm
- Frequency
- 50/60 Hz
- Full Load Current
- 25A
- Guarantee
- 1 Year
- Height
- 84mm
- Hp Rating
- 15metric hp
- Material
- Metal/Plastic
- Mounting
- DIN Rail / Screw Mounting
- Number of Poles
- 4 Pole
- Packaging Types
- Box
- Product Range
- CC Range
- Standards
- IEC 60947, EN 60947
- Unspsc V18
- 39121529
- Unspsc V24
- 39121529
- Weight
- 0.05670kg
- Width
- 56mm
- kW Rating
- 11kW
