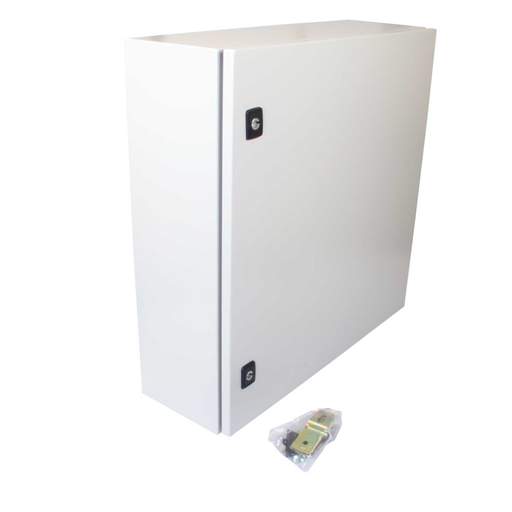

MCG 600mm x 600mm x 200mm Steel Enclosure with Mounting Plate IP66
Part Code: M66200
Stock Code: 1434-9469
MCG 600mm x 600mm x 200mm Steel Enclosure with Mounting Plate IP66
Part Code: M66200
Stock Code: 1434-9469
Features
- Galvanised sheet steel
- Supplied with Zinc plated metal mounting plate (2mm)
- Mounting kit and key included
- Epoxy powder coated RAL 7035
- Recessed gland plate, top or bottom
- Reversible door hanging
- Polyurethane gasket
- Standard T-bar lock
- Complies to IEC 60529
- IP66 rated
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Cable Entry
- Recessed Gland Plate
- Colour
- Grey
- Compliance
- UKCA, CE
- Depth
- 200mm
- Dimensions
- (H)600 mm x (W)600 mm x (D)200 mm
- Door Type
- Hinged
- Finish
- Epoxy Powder Coated
- Gland Plates
- Yes
- Guarantee
- 1 Year
- Height
- 600mm
- IP Rating
- IP66
- Lockable
- Yes
- Material
- Sheet Steel
- Mounting
- Surface
- Mounting Plates
- Yes
- Packaging Types
- Box
- Standards
- IEC 60529
- Supplied With
- Backplate, Mounting Kit and Key
- Unspsc V18
- 39121324
- Unspsc V24
- 39121324
- Weight
- 21.05000kg
- Width
- 600mm
