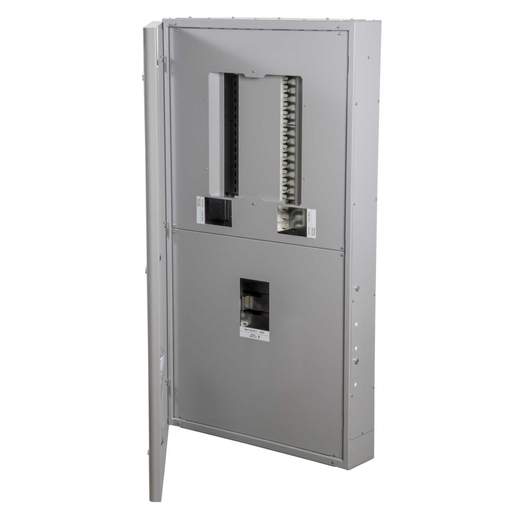

Eaton 12 Way 400A TP+N MCCB Panelboard without Incomer
Part Code: EPBN21240
Stock Code: 1443-9493
Eaton 12 Way 400A TP+N MCCB Panelboard without Incomer
Part Code: EPBN21240
Stock Code: 1443-9493
Features
- Panelboards to IEC 61439-2 form 3b type 2
- Busbar system KEMA certified 50kA lcc, lcw 35kA 1s
- IP3X construction
- MCCBs to IEC 60947-2
- kA ratings shown are lcs=lcu at 400V AC
- Switch disconnectors to IEC 60947-3
- 12 way [2 x 250A + 10 x 160A]
- Outgoing devices
- Tin-plated busbars
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Brand
- Eaton Electric
- Current Rating
- 400A
- Depth
- 210.5mm
- Dimensions
- (H)1563 mm x (W)853 mm x (D)210.5 mm
- Guarantee
- 1 Year
- Height
- 1563mm
- IP Rating
- IP3X
- Incoming Device
- Not Supplied
- Incoming Device Frame Size
- NZM3 or N3
- Mounting
- Surface
- Number of Outgoing Ways
- 12
- Outgoing Device Frame Size
- NZM1 or NZM2
- Outgoing Devices Max.Rating
- 2 x 250A, 10 x 160A
- Packaging Types
- Each
- Previously Known As
- 164275
- Product Range
- Memshield 3
- Standards
- IEC 61439
- Type
- Panelboard
- Unspsc V18
- 39121103
- Unspsc V24
- 39121103
- Weight
- 86.00000kg
- Width
- 853mm
