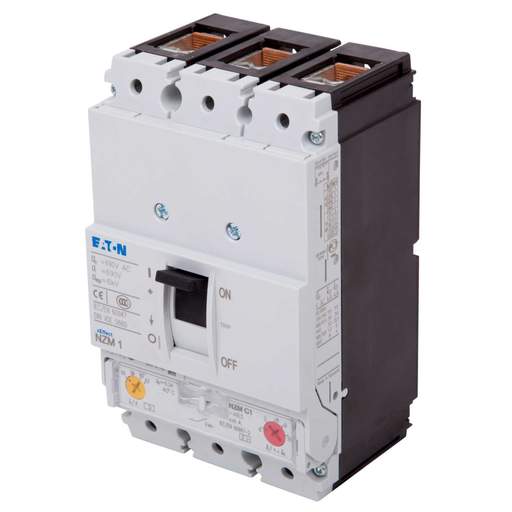

Eaton 63A Triple Pole 36kA MCCB
Part Code: NZMC1-A63
Stock Code: 1443-9751
Eaton 63A Triple Pole 36kA MCCB
Part Code: NZMC1-A63
Stock Code: 1443-9751
Features
- Outgoing device NZM1 frame MCCB
- Maximum cable capacity 70mm²
- Triple pole thermal trip adjustment 0.8 to 1 x ln, magnetic trip adjustment 6 to 10 x ln
- 36kA
- 50kA triple pole also available, change 'C' to 'N' in list number i.e. NZMN1-A63
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Brand
- Eaton Electric
- Current Rating
- 63A
- Depth
- 88mm
- Dimensions
- (H)145 mm x (W)90 mm x (D)88 mm
- Guarantee
- 1 Year
- Height
- 145mm
- Mounting
- Panel
- Number of Poles
- Triple Pole
- Packaging Types
- Each
- Previously Known As
- 271394
- Product Range
- Memshield 3
- Short Circuit Rating
- 36kA
- Standards
- IEC 60947
- Type
- MCCB
- Unspsc V18
- 39121616
- Unspsc V24
- 39121616
- Weight
- 1.04900kg
- Width
- 90mm
