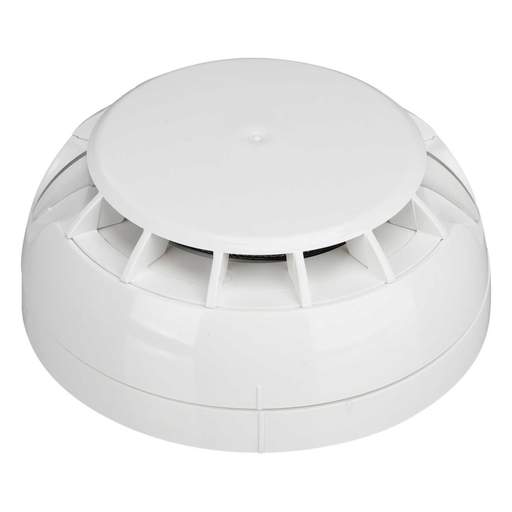

ESP Optical Smoke Detector with Relay Base
Part Code: PSD212
Stock Code: 1445-5648
ESP Optical Smoke Detector with Relay Base
Part Code: PSD212
Stock Code: 1445-5648
Features
- Conventional wired optical detector with relay base
- Latching with visual bi-directional indication
- Low current drain
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Brand
- ESP
- Colour
- White
- Compliance
- CPR
- Current Rating
- 29mA
- Depth
- 48mm
- Diameter
- 102mm
- Dimensions
- (Dia)102 mm x (D)48 mm
- Guarantee
- 3 Years
- IP Rating
- IP30
- Maximum Operating Temperature
- 60°C
- Minimum Operating Temperature
- -10°C
- Operating Voltage Range
- 9 - 30V
- Packaging Types
- Each
- Standards
- EN54-7
- Unspsc V18
- 46191501
- Unspsc V24
- 46191501
- Weight
- 0.16000kg
