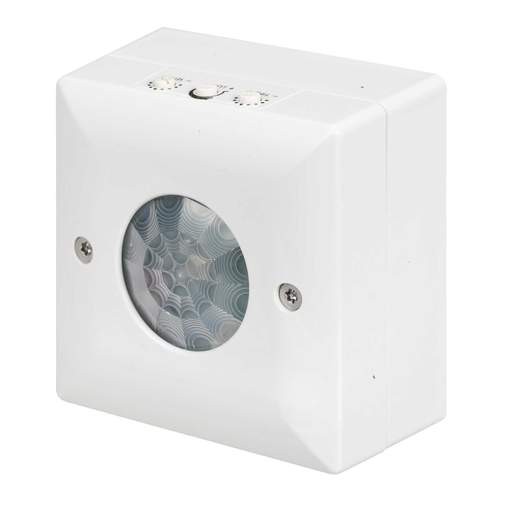

Danlers Ceiling Surface Mounted Plug In PIR Occupancy Switch White
Part Code: CELO
Stock Code: 0061-7404
Danlers Ceiling Surface Mounted Plug In PIR Occupancy Switch White
Part Code: CELO
Stock Code: 0061-7404
Features
- Surface mounted models ideal for solid ceilings
- The CELO has a built-in plug suitable for the CESO SQ ceiling socket [or CESO ceiling socket]
- CESO SQ can be mounted on a square pattress box [the CESO can be mounted on a BESA box]
- Detection zone 360°
- Photocell range 100 to 1000 lux and inactive
- Loading up to 6A [1500W] of resistive, fluorescent or inductive lighting loads, or up to 1A of fans
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Brand
- Danlers
- Colour
- White
- Current Rating
- 6A
- Detection Angle
- 360°
- Detection Range
- 7m
- Dimensions
- (L)86 mm x (H)47 mm x (W)86 mm
- Guarantee
- 5 Years
- Height
- 47mm
- Length
- 86mm
- Lux Adjustment
- Yes
- Maximum Switching Load
- Incandescent - 1500W [6A], Fluorescent - 1500W [6A], Halogen - 750W [3A], LED - 500W [2A], Energy Saving - 500W [2A]
- Mounting
- Ceiling / Surface
- Packaging Types
- Each
- Power Rating
- 1500W
- Size
- 86 mm x 86 mm x 47 mm
- Standards
- BS EN 60669
- Type
- PIR Occupancy Switch
- Unspsc V18
- 39122236
- Unspsc V24
- 39122236
- Voltage Rating
- 230V
- Weight
- 0.18400kg
- Width
- 86mm
