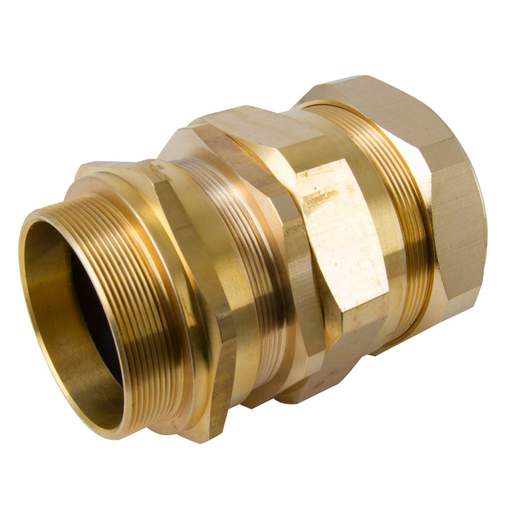

CMP 63S M63 E1FX Cable Gland (Sold in 1's)
Part Code: 63SE1FX1RA
Stock Code: 0007-0906
CMP 63S M63 E1FX Cable Gland (Sold in 1's)
Part Code: 63SE1FX1RA
Stock Code: 0007-0906
Delivery
2 In Stock
Free delivery on orders over £50
£5.95 Delivery on orders under £50
Features
- For use with braided cables SY/CY
- E1FX Internationally Approved, Explosive Atmosphere Cable Gland
- Metal-to-metal armour clamping
- Direct & remote installation
- Displacement type flameproof inner seal
- Controlled outer ‘load retention’ seal
- Unique OSTG prevents overtightening
- Designed to prevent Coldflow
- Marine approvals, LRS: 01/00172 (E3), DNV: E-13848, ABS: 14-LD234401A-4-PDA
- -60˚C to +130˚C
- Class I Zone 1, 21 and Zone 2, 22 Class I Division 2 ABCD
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Brand
- CMP
- Atex Classificatio
- 2G, II 1D, Ex d IIC Gb, Ex e IIC Gb, Ex ta IIIC Da, II 3G Ex nR IIC Gc, IM2 Ex d I Mb, Ex e I Mb
- Cable Entry
- 45.6 - 59.4 mm
- Certification Code
- IECEx SIR 13.0026X, IECEx SIM 14.0007X
- Compliance
- EN 60079-0,1,7,15,31
- Dimensions
- (L)117 mm
- Finish
- Brass
- Gland Type
- 63S E1FX
- Guarantee
- 1 Year
- IP Rating
- IP66 / IP67 / IP68
- Length
- 117mm
- Material
- Body - Brass, Seal - CMP SOLO LSF Halogen Free Thermoset Elastomer
- Packaging Types
- Each
- Previously Known As
- 63SE1FX
- Product Range
- E1FX Cable Gland
- Size
- M63
- Standards
- BS 6121:Part 1:1989, IEC 62444, EN 62444
- Suitable For
- All types of Steel & Aluminium Wire Armoured Cables
- Thread Size
- 63mm
- Type
- 63S E1FX
- Unspsc V18
- 39121431
- Unspsc V24
- 39121431
- Weight
- 1.34kg
- Zone Rating
- Zone 1 Zone 2 Zone 21 Zone 22
