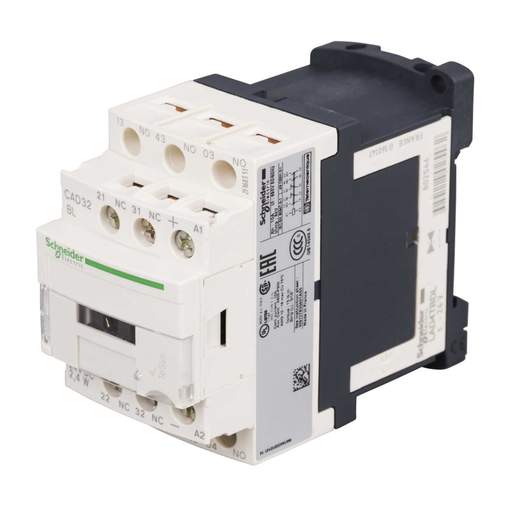

Schneider TeSys 10A Control Relay 3 NO + 2 NC Contacts 24V DC Coil (Low Consumption)
Part Code: CAD32BL
Stock Code: 0082-7245
Schneider TeSys 10A Control Relay 3 NO + 2 NC Contacts 24V DC Coil (Low Consumption)
Part Code: CAD32BL
Stock Code: 0082-7245
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Coil Voltage
- 24V DC
- Contact Configuration
- 3 NO 2 NC
- Current Rating
- 10A
- Depth
- 93mm
- Dimensions
- (H)77 mm x (W)45 mm x (D)93 mm
- Guarantee
- 18 Months
- Height
- 77mm
- Number of Poles
- 4 Pole
- Packaging Types
- Each
- Product Range
- TeSys D
- Standards
- BS 4794 EN 60947-5
- Unspsc V18
- 39122331
- Unspsc V24
- 39122331
- Voltage Rating
- 24V
- Weight
- 0.53100kg
- Width
- 45mm
