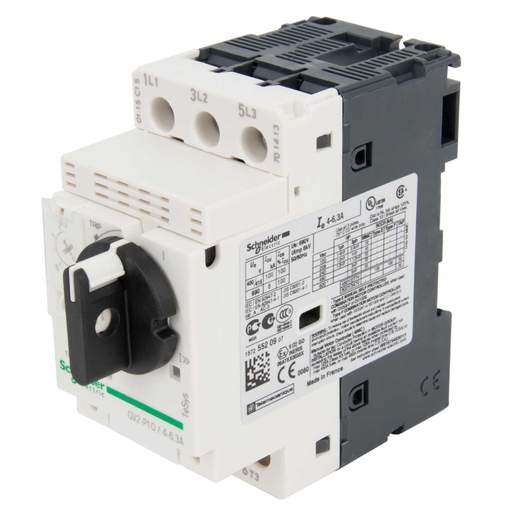

Schneider TeSys 4A to 6.3A 100kA Thermal Magnetic Circuit Breaker
Part Code: GV2P10
Stock Code: 0082-9921
Schneider TeSys 4A to 6.3A 100kA Thermal Magnetic Circuit Breaker
Part Code: GV2P10
Stock Code: 0082-9921
Features
- TeSys GV2 P range
- Rotary control and adjustable protection range
- For motor protection
- DIN rail or plate mounted
- IEC EN 60947
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Depth
- 97mm
- Dimensions
- (H)89 mm x (W)45 mm x (D)97 mm
- Frequency
- 50/60 Hz
- Guarantee
- 18 Months
- Height
- 89mm
- IP Rating
- IP20
- Motor Power Ratingat415 V
- 2.2kW
- Mounting
- Din Rail
- Overload Rating
- 4 - 6.3A
- Packaging Types
- Each
- Standards
- EN 60204, IEC 60947
- Unspsc V18
- 39121521
- Unspsc V24
- 39121521
- Voltage Rating
- 415V
- Weight
- 0.32600kg
- Width
- 45mm
