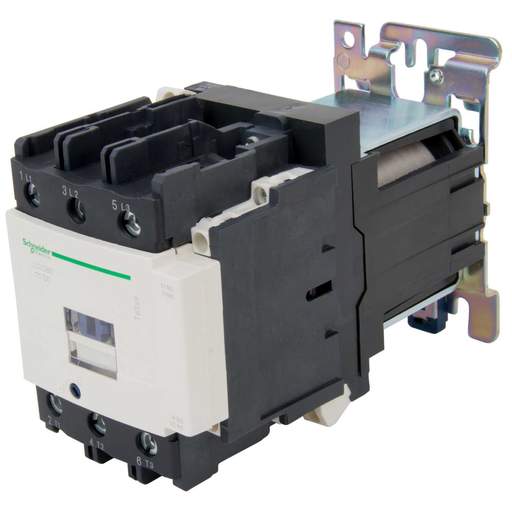

Schneider TeSys 80A Contactor 3 Pole 3 NO Contacts 24V DC Coil
Part Code: LC1D80BD
Stock Code: 0084-1120
Schneider TeSys 80A Contactor 3 Pole 3 NO Contacts 24V DC Coil
Part Code: LC1D80BD
Stock Code: 0084-1120
Features
- Contactor with auxiliary suitable for motors and resistive loads
- Screw terminals
- DIN rail or plate mounted
- EN 60947-4-1, EN 60947-5-1
- Please note product colour may vary from the product image
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Auxiliary Contact
- 1 NO 1 NC
- Coil Voltage
- 24V DC
- Colour
- Black/Grey
- Contact Configuration
- 3 NO
- Current Rating Ac1
- 125A
- Current Rating Ac3
- 80A
- Depth
- 186mm
- Dimensions
- (H)127 mm x (W)85 mm x (D)186 mm
- Frequency
- 0 - 400 Hz
- Guarantee
- 18 Months
- Height
- 127mm
- IP Rating
- IP2X
- Mounting
- DIN Rail / Plate
- Number of Poles
- 3 Pole
- Packaging Types
- Each
- Product Range
- TeSys D
- Standards
- EN 60947, UL 508, CSA C22.2 No 14
- Type
- Contactor
- Unspsc V18
- 39121529
- Unspsc V24
- 39121529
- Voltage Rating
- 24V
- Weight
- 2.57900kg
- Width
- 85mm
- kW Rating
- 37kW
