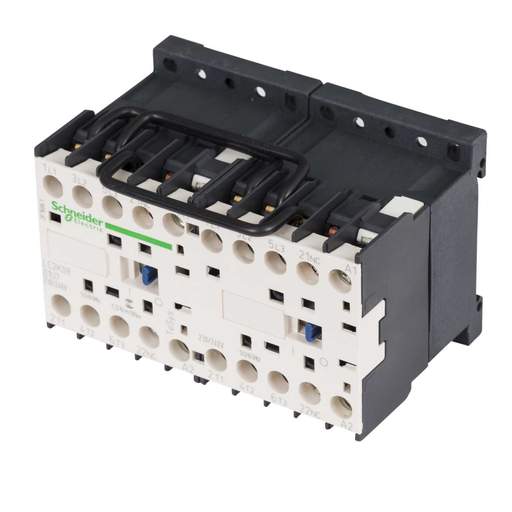

Schneider TeSys 9A Reversing Contactor 3 Pole 3 NO Contacts 230V AC Coil
Part Code: LC2K0901U7
Stock Code: 0084-7381
Schneider TeSys 9A Reversing Contactor 3 Pole 3 NO Contacts 230V AC Coil
Part Code: LC2K0901U7
Stock Code: 0084-7381
Features
- for motor control and resistive loads
- Operating temperature: -25 to 50°C
- For DIN rail or plate mounting
- BS 5424, EN 60947-4-1 and EN 60947-5-1
- Please note product colour may vary from the product image
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Auxiliary Contact
- 1 NC
- Coil Voltage
- 230V AC
- Colour
- Black/Grey
- Contact Configuration
- 3 NO
- Current Rating Ac3
- 9A
- Depth
- 57mm
- Dimensions
- (H)58 mm x (W)90 mm x (D)57 mm
- Frequency
- 50/60 Hz
- Guarantee
- 18 Months
- Height
- 58mm
- IP Rating
- IP2X
- Mounting
- DIN Rail / Plate
- Number of Poles
- 3 Pole
- Packaging Types
- Each
- Product Range
- TeSys D
- Standards
- EN 60947, IEC 60947, UL 508, CSA C22.2 No 14
- Unspsc V18
- 39121529
- Unspsc V24
- 39121529
- Weight
- 0.36400kg
- Width
- 90mm
- kW Rating
- 4kW
