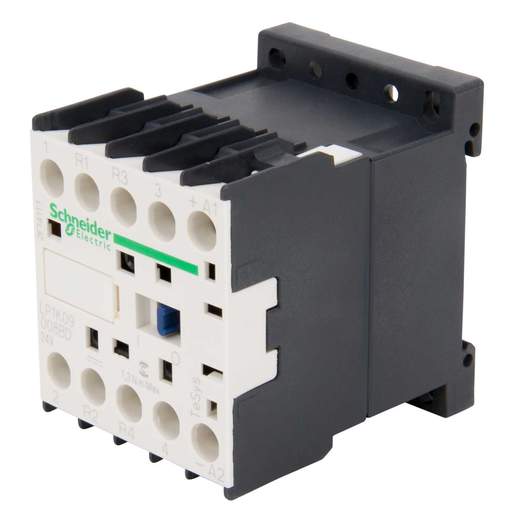

Schneider TeSys 20A Contactor 4 Pole 2 NO + 2 NC Contacts 24V DC Coil
Part Code: LP1K09008BD
Stock Code: 0085-1194
Schneider TeSys 20A Contactor 4 Pole 2 NO + 2 NC Contacts 24V DC Coil
Part Code: LP1K09008BD
Stock Code: 0085-1194
Features
- Mini contactor for motors and resistive loads
- Operating temperature: -25 to 50°C
- DIN rail or plate mounting
- IEC 60947
- Please note product colour may vary from the product image
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Coil Voltage
- 24V DC
- Colour
- Black/Grey
- Contact Configuration
- 2 NO + 2 NC
- Current Rating Ac3
- 20A
- Depth
- 57mm
- Dimensions
- (H)58 mm x (W)45 mm x (D)57 mm
- Frequency
- 50/60 Hz
- Guarantee
- 18 Months
- Height
- 58mm
- IP Rating
- IP2X
- Mounting
- DIN Rail / Plate
- Number of Poles
- 4 Pole
- Packaging Types
- Each
- Product Range
- TeSys K
- Standards
- BS 5424, IEC 60947, NF C 63-110, VDE 0660
- Unspsc V18
- 39121529
- Unspsc V24
- 39121529
- Weight
- 0.22000kg
- Width
- 45mm
- kW Rating
- 7.5kW
