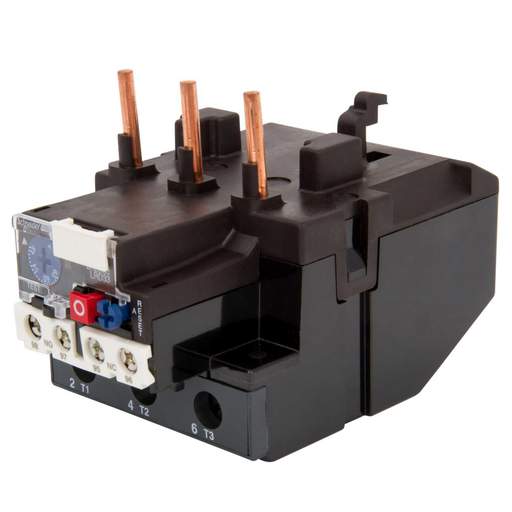

Schneider TeSys 48 - 65A Thermal Overload Relay
Part Code: LRD3359
Stock Code: 0085-2052
Schneider TeSys 48 - 65A Thermal Overload Relay
Part Code: LRD3359
Stock Code: 0085-2052
Features
- Relay application: motor protection
- Differential thermal overload relay
- Operating temperature: -5 to 55°C
- Product compatibility: LC1D80 - LC1D95
- EN 60947-5-1
- Please note product colour may vary from the product image
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Depth
- 121mm
- Dimensions
- (H)123 mm x (W)75 mm x (D)121 mm
- Frequency
- 0 - 400 Hz
- Guarantee
- 18 Months
- Height
- 123mm
- IP Rating
- IP2X
- Mounting
- Under Contactor
- Operating Temperature
- 60°C
- Overload Rating
- 48 - 65A
- Packaging Types
- Each
- Product Range
- TeSys D
- Standards
- EN 60947, IEC 60947, UL 508, CSA C22.2 No 14
- Unspsc V18
- 39122330
- Unspsc V24
- 39122330
- Weight
- 0.49000kg
- Width
- 75mm
