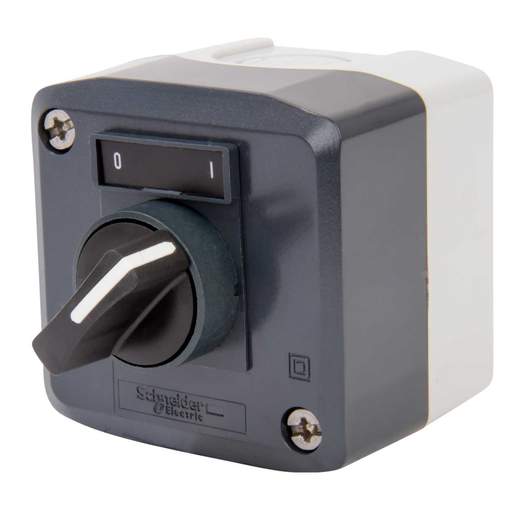

Schneider Harmony 2 Position Selector Switch Control Station IP66
Part Code: XALD134
Stock Code: 0085-8043
Schneider Harmony 2 Position Selector Switch Control Station IP66
Part Code: XALD134
Stock Code: 0085-8043
Features
- Surface mounted control station
- Supplied with 'O-I' selector switch
- Harmony XALD range
- Polycarbonate enclosure
- Light grey RAL 7035 base
- Dark grey RAL 7016 cover
- Suitable for start/stop function
- Marking on legend holder
- 2 knock-outs for Pg 13 cable gland and ISO M20, clamping capacity:
= 12 mm - 2 knock-outs for cable entry, clamping capacity:
= 14 mm
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Cable Entry
- 2 x 12mm and 2 x 14mm
- Colour
- Grey
- Contact Configuration
- 1 NO
- Depth
- 53mm
- Dimensions
- (H)68 mm x (W)68 mm x (D)53 mm
- Guarantee
- 18 Months
- Height
- 68mm
- IP Rating
- IP66
- Legend
- 0 / 1
- Material
- Polycarbonate
- Maximum Operating Temperature
- +70°C
- Minimum Operating Temperature
- -25°C
- Mounting
- Surface
- Operation Type
- Selector Switch
- Packaging Types
- Each
- Product Range
- Harmony XALD
- Standards
- EN 60947, IEC 60947, JIS C 4520, UL 508, CSA C22.2 No 14
- Suitable For
- Start/Stop Function
- Supplied With
- 1 x Selector Switch with Standard Handle 1 NO O- I Marking
- Unspsc V18
- 39121326
- Unspsc V24
- 39121326
- Weight
- 0.14600kg
- Width
- 68mm
