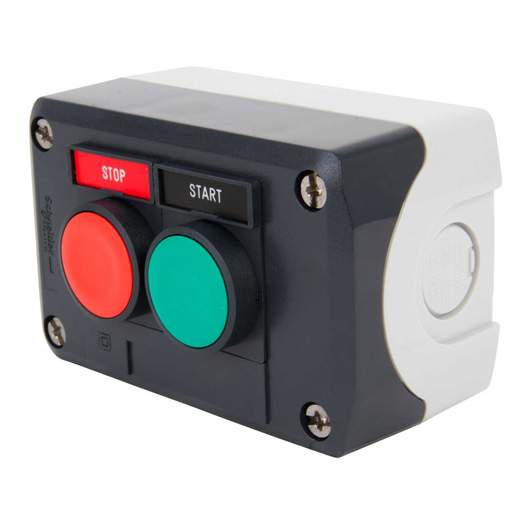

Schneider Harmony Horizontal Start / Stop Pushbutton Station IP66
Part Code: XALD211H29
Stock Code: 0085-8049
Schneider Harmony Horizontal Start / Stop Pushbutton Station IP66
Part Code: XALD211H29
Stock Code: 0085-8049
Features
- Surface mounted control station
- Supplied with stop and start buttons and contact blocks
- Harmony XALD range
- Polycarbonate enclosure
- Legends also supplied
- Light grey RAL 7035 base
- Dark grey RAL 7016 cover
- 2 knock-outs for Pg 13 cable gland and ISO M20, clamping capacity:
= 12mm - 2 knock-outs for cable entry, clamping capacity:
= 14mm
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Cable Entry
- 2 x 12mm and 2 x 14mm
- Colour
- Grey
- Contact Configuration
- 1 NO 1 NC
- Depth
- 53mm
- Dimensions
- (H)106 mm x (W)68 mm x (D)53 mm
- Guarantee
- 18 Months
- Height
- 106mm
- IP Rating
- IP66
- Legend
- Start / Stop
- Material
- Polycarbonate
- Maximum Operating Temperature
- 70°C
- Minimum Operating Temperature
- -25°C
- Mounting
- Surface
- Number of Ways
- 2
- Operation Type
- Pushbutton
- Packaging Types
- Each
- Product Range
- Harmony XALD
- Supplied With
- 1 x Green 'START' Pushbutton with NO contact and 1 x Red 'STOP' Pushbutton with NC Contact
- Unspsc V18
- 39121326
- Unspsc V24
- 39121326
- Weight
- 0.22500kg
- Width
- 68mm
