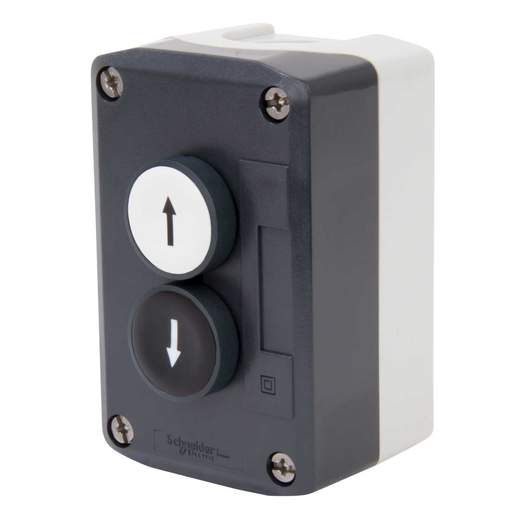

Schneider Harmony 2 Way Up / Down Pushbutton Station IP66
Part Code: XALD222
Stock Code: 0085-8061
Schneider Harmony 2 Way Up / Down Pushbutton Station IP66
Part Code: XALD222
Stock Code: 0085-8061
Features
- Surface mounted control station
- Supplied with 1 x white arrow up and 1 x black arrow down pushbuttons
- Harmony XALD range
- Polycarbonate enclosure
- Light grey RAL 7035 base with dark grey RAL 7016 cover
- 2 knock-outs for Pg 13 cable gland and ISO M20, clamping capacity:
= 12mm - 2 knock-outs for cable entry, clamping capacity:
= 14mm
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Cable Entry
- 2 x 12mm and 2 x 14mm
- Colour
- Grey/Black
- Contact Configuration
- 2 NO
- Depth
- 53mm
- Dimensions
- (H)106 mm x (W)68 mm x (D)53 mm
- Guarantee
- 18 Months
- Height
- 106mm
- IP Rating
- IP66
- Legend
- Black Arrow Down / White Arrow Up
- Material
- Polycarbonate
- Maximum Operating Temperature
- +70°C
- Minimum Operating Temperature
- -25°C
- Mounting
- Surface
- Number of Ways
- 2
- Operation Type
- Pushbutton
- Packaging Types
- Each
- Product Range
- Harmony XALD
- Supplied With
- 1 x White 'Up Arrow' Pushbutton with NO Contact and 1 x 'Down Arrow' Pushbutton with NO Contact
- Unspsc V18
- 39121326
- Unspsc V24
- 39121326
- Weight
- 0.22400kg
- Width
- 68mm
