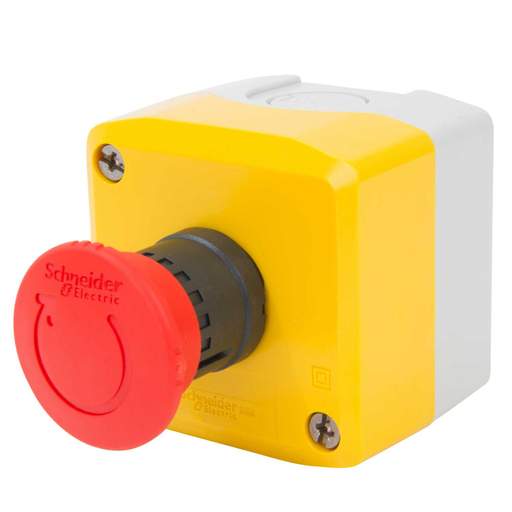

Schneider Harmony Emergency Stop Twist Release Pushbutton Station IP66 2 NC Contacts
Part Code: XALK178F
Stock Code: 0085-8121
Schneider Harmony Emergency Stop Twist Release Pushbutton Station IP66 2 NC Contacts
Part Code: XALK178F
Stock Code: 0085-8121
Features
- Surface mounted control station
- Supplied with 1 x red unmarked mushroom head pushbutton 2 NC contacts
- Button diameter: 40mm
- Turn to release
- Polycarbonate enclosure
- Light grey RAL 7035 base
- Yellow RAL 1021 cover
- 2 knock-outs for Pg 13 cable gland and ISO M20
= 12mm - 1 knock-out for cable entry
= 14mm
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Cable Entry
- 2 x 12mm and 1 x 14mm
- Colour
- Yellow/Grey
- Contact Configuration
- 2 NC
- Depth
- 53mm
- Diameter
- 40mm
- Dimensions
- (Dia)40 mm x (H)68 mm x (W)68 mm x (D)53 mm
- Guarantee
- 18 Months
- Height
- 68mm
- IP Rating
- IP66
- Material
- Polycarbonate
- Maximum Operating Temperature
- 70°C
- Minimum Operating Temperature
- -25°C
- Mounting
- Surface
- Operation Type
- Twist Release
- Packaging Types
- Each
- Product Range
- Harmony XALK
- Suitable For
- Emergency Stop or Switching Off Function
- Supplied With
- 1 x Red Mushroom Head Pushbutton with 2 NC Contacts
- Unspsc V18
- 39121565
- Unspsc V24
- 39121565
- Weight
- 0.16800kg
- Width
- 68mm
