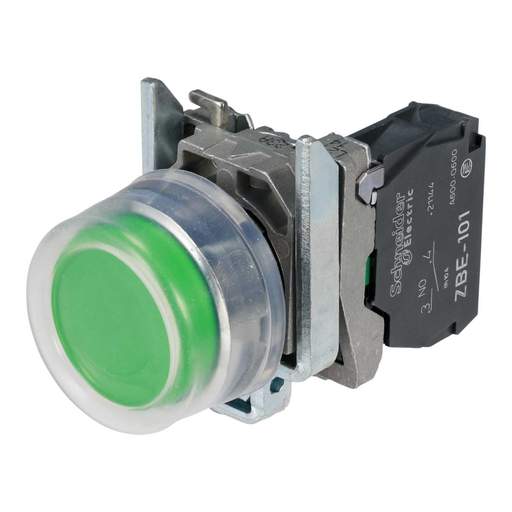

Schneider Harmony Flush Spring Return 1 NO Booted Pushbutton Green
Part Code: XB4BP31
Stock Code: 0085-8634
Schneider Harmony Flush Spring Return 1 NO Booted Pushbutton Green
Part Code: XB4BP31
Stock Code: 0085-8634
Features
- Ø22 pushbutton
- Spring return
- Unmarked
- Green
- Clear boot
- 1 NO
- Not compatible with legend holder
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Colour
- Green
- Contact Configuration
- 1 NO
- Cut Out
- 22mm
- Depth
- 61mm
- Diameter
- 22mm
- Dimensions
- (Dia)22 mm x (H)47 mm x (W)30 mm x (D)61 mm
- Guarantee
- 18 Months
- Height
- 47mm
- IP Rating
- IP66
- Maximum Operating Temperature
- +70°C
- Minimum Operating Temperature
- -25°C
- Mounting
- Panel
- Operation Type
- Spring Return Pushbutton
- Packaging Types
- Each
- Product Range
- Harmony XB4
- Unspsc V18
- 39122216
- Unspsc V24
- 39122216
- Weight
- 0.08200kg
- Width
- 30mm
