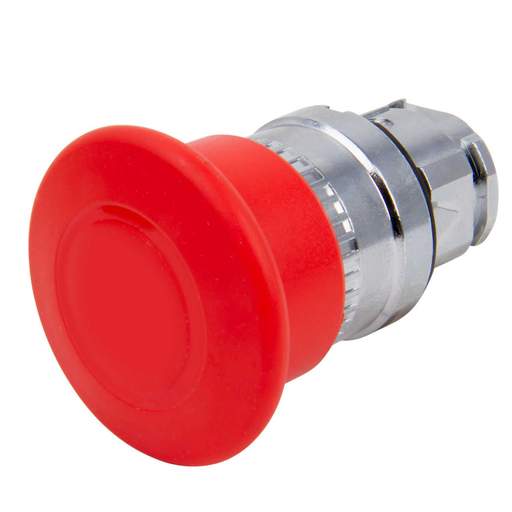

Schneider Harmony Emergency Stop Mushroom Head Twist Release Pushbutton Head Red
Part Code: ZB4BT84
Stock Code: 0087-4390
Schneider Harmony Emergency Stop Mushroom Head Twist Release Pushbutton Head Red
Part Code: ZB4BT84
Stock Code: 0087-4390
Features
- Chromium plated metal bezel
- Mushroom Head
- IP66
- Trigger action and mechanical latching
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Colour
- Red
- Cut Out
- 22mm
- Depth
- 56mm
- Diameter
- 40mm
- Dimensions
- (Dia)40 mm x (H)40 mm x (W)40 mm x (D)56 mm
- Guarantee
- 18 Months
- Height
- 40mm
- IP Rating
- IP66
- Maximum Operating Temperature
- 70°C
- Minimum Operating Temperature
- -25°C
- Mounting
- Panel
- Operation Type
- Trigger and Latching Push - Pull
- Packaging Types
- Each
- Product Range
- Pushbuttons
- Standards
- EN IEC 60204, EN IEC 60947, EN ISO 13850, IEC 60364, JIS C 4520, UL 508
- Unspsc V18
- 39122216
- Unspsc V24
- 39122216
- Weight
- 0.07600kg
- Width
- 40mm
