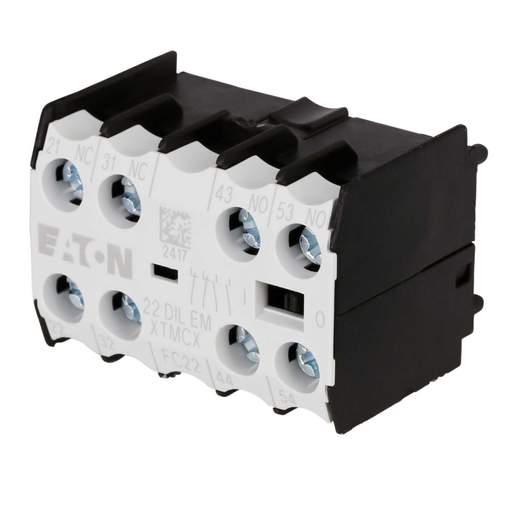

Moeller 22DILEM Auxiliary Contact Block 2 NO + 2 NC Contacts
Part Code: 10112
Stock Code: 0090-9586
Moeller 22DILEM Auxiliary Contact Block 2 NO + 2 NC Contacts
Part Code: 10112
Stock Code: 0090-9586
Features
- Interlocked opposing contacts for standard applications
- Operating temperature -25 - 60°C
- Screw terminals
- EN 60947-4-1
- Suitable for DILEM Mini contactors
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Brand
- Moeller
- Cable Size
- 2.5mm²
- Colour
- Black/Grey
- Contact Configuration
- 2 NO + 2 NC
- Current Rating
- 10A
- Guarantee
- 1 Year
- Mounting
- Front
- Number of Poles
- 4 Pole
- Operating Temperature Range
- -25 - 50°C
- Packaging Types
- Each
- Product Range
- DILEM Contactors
- Standards
- IEC/EN 60947, UL 508, CSA-C22.2
- Suitable For
- DILEM-10, DILEM-4, DILEEM-10, DILEM12-10
- Unspsc V18
- 39121529
- Unspsc V24
- 39121529
- Weight
- 0.00900kg
