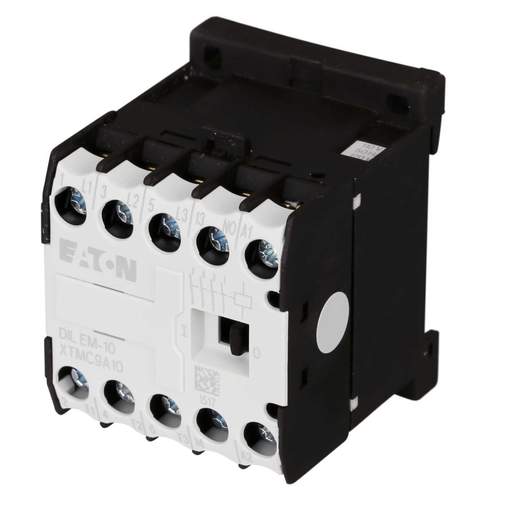

Moeller DILEM-10 4kW Mini Contactor 3 NO Contacts 110V Coil

Part Code: 51783

Stock Code: 0091-7293

Moeller DILEM-10 4kW Mini Contactor 3 NO Contacts 110V Coil

Part Code: 51783

Stock Code: 0091-7293

Delivery

4 In Stock

Free delivery on orders over £50

£5.95 Delivery on orders under £50

Features

  • Miniature contactor for motors and resistive loads with auxiliary contacts
  • 3 Pole
  • Screw terminals
  • DIN rail or panel mounted
  • IEC 60947-4-1

Downloads

Specifications

All images and text, © Copyright City Electrical Factors Ltd
All images and text, © Copyright City Electrical Factors Ltd
Brand
Moeller
Auxiliary Contact
1 NO
Coil Voltage
110V AC
Contact Configuration
3 NO
Current Rating Ac1
22A
Current Rating Ac3
9A
Depth
52mm
Dimensions
(H)58 mm x (W)45 mm x (D)52 mm
Guarantee
1 Year
Height
58mm
IP Rating
IP20
Mounting
DIN Rail / Surface
Number of Poles
3 Pole
Packaging Types
Each
Product Range
DILEM
Standards
IEC/EN 60947-4-1; UL 508; CSA-C22.2 No. 14-05; CE Marking
Type
DILEM Contactors
Unspsc V18
39121529
Voltage Rating
690V
Weight
1.5kg
Width
45mm
kW Rating
4kW
