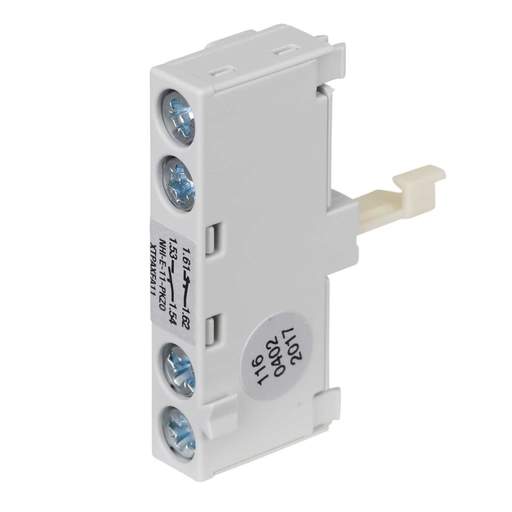

Moeller NHI-E-11-PKZ0 1 NO + 1 NC Auxiliary Contact
Part Code: 82882
Stock Code: 0092-9917
Moeller NHI-E-11-PKZ0 1 NO + 1 NC Auxiliary Contact
Part Code: 82882
Stock Code: 0092-9917
Features
- Can be retrofitted to motor-protective circuit-breakers, transformer-protective circuit-breakers
- Front fastening mounting method
- 1A Rated operation current at 230V
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Brand
- Moeller
- Colour
- Cream
- Compliance
- CE
- Contact Configuration
- 1 NO 1 NC
- Depth
- 76mm
- Dimensions
- (H)93 mm x (W)45 mm x (D)76 mm
- Guarantee
- 1 Year
- Height
- 93mm
- Packaging Types
- Each
- Product Range
- Accessories
- Standards
- UL 508, CSA C22.2 No 14, IEC 60947
- Suitable For
- PKZM01, PKZM0, PKZM4, PKZM0-T, PKM0 and PKE Manual Motor Starters
- Unspsc V18
- 39121521
- Unspsc V24
- 39121521
- Weight
- 0.03200kg
- Width
- 45mm
