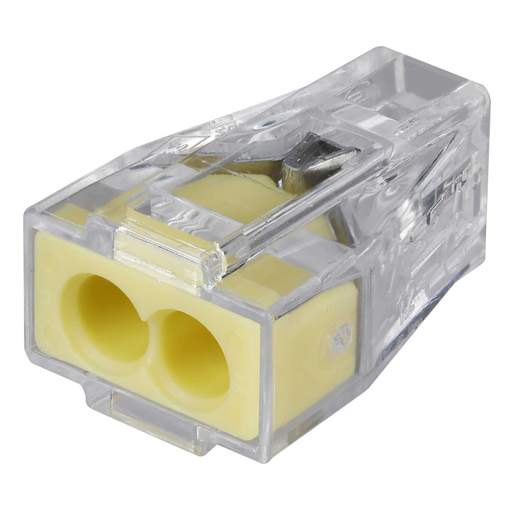

Wago 24A 2 Way 2.5mm Push Wire Connector (Pack of 100)
- Part Code: 773-102
- Stock Code: 0105-8272
- Push wire connector for junction boxes
- For solid and stranded conductors
Specification
| Brand | Wago |
| Colour | Yellow |
| Current Rating | 24A |
| Depth | 19.5mm |
| Dimensions | (H)13.1 mm x (W)9.2 mm x (D)19.5 mm |
| Guarantee | 1 Year |
| Height | 13.1mm |
| Material | Polycarbonate |
| Number of Ways | 2 |
| Packaging Types | Each |
| Unspsc V18 | 39121409 |
| Voltage Rating | 400V AC |
| Weight | 0.00154kg |
| Width | 9.2mm |
| Wire Combination Range | Solid Conductor 0.75 to 2.5 mm² Stranded Conductor 1.5 to 2.5 mm² |
