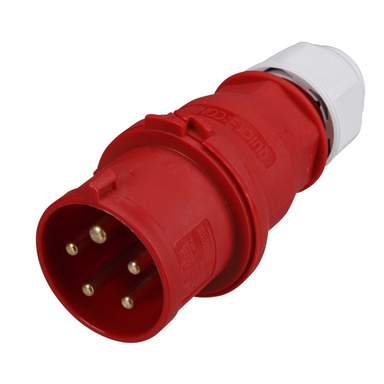

Ceenorm Quick Connect 32A 3P+N+E 415V Coupler IP44
Part Code: 3148
Stock Code: 0112-1104
Ceenorm Quick Connect 32A 3P+N+E 415V Coupler IP44
Part Code: 3148
Stock Code: 0112-1104
Features
- Quick connect screwless terminals
- Multi-Grip cable gland with gasket and strain relief
- Brass nickel plated contacts with a maximum conductor size of 6mm²
- IP44 splashproof
- Manufactured from polyamide
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Cable Entry
- Gland
- Colour
- Red
- Compliance
- CE
- Current Rating
- 32A
- Dimensions
- (L)188 mm x (H)102 mm x (W)79 mm
- Frequency
- 50/60 Hz
- Guarantee
- 1 Year
- Height
- 102mm
- IP Rating
- IP44
- Length
- 188mm
- Material
- Polyamide / Brass
- Mounting
- Trailing
- Number of Poles
- 3P N E
- Packaging Types
- Each
- Product Range
- Quick Connect
- Standards
- IEC 309-2
- Terminal Type
- Spring
- Unspsc V18
- 39121406
- Unspsc V24
- 39121406
- Voltage Rating
- 415V
- Weight
- 0.31000kg
- Width
- 79mm
