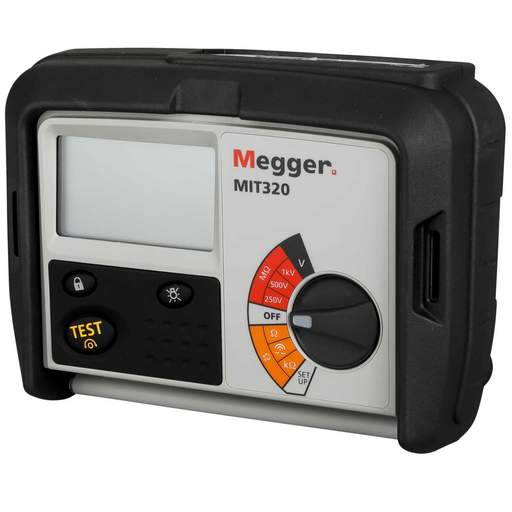

Megger MIT320 Digital Insulation and Continuity Tester
Part Code: MIT320
Stock Code: 0113-3167
Megger MIT320 Digital Insulation and Continuity Tester
Part Code: MIT320
Stock Code: 0113-3167
Features
- Continuity resistance readings from 0.01Ω - 2kΩ
- Insulation tests at 250V, 500V and 1000V
- Insulation resistance measurements up to 999MΩ
- Voltage measurement up to 600V AC/DC
- Null function
- Live circuit warning
- Result storage and downloading
- Download software included
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Ac Voltage Measurement
- 600V AC
- Battery Level Indicator
- Yes
- Battery Size
- AA
- Battery Type
- Alkaline
- Continuity Check
- Yes
- Continuity Range
- 0.01 Ω - 100 Ω
- Dc Voltage Measurement
- 600V DC
- Depth
- 78mm
- Dimensions
- (H)148 mm x (W)203 mm x (D)78 mm
- Display Type
- LCD
- Guarantee
- 3 Years
- Height
- 148mm
- Humidity Range
- Up to 93% RH @ 40°C
- IP Rating
- IP54
- Insulation Resistance Measuring Range
- 0.01 MΩ - 999 MΩ
- Insulation Test Voltage
- 250V / 500V / 1000V
- Number of Batteries
- 8
- Operating Temperature Range
- -10 - 60°C
- Packaging Types
- Each
- Product Range
- Insulation and Continuity
- Safety Range
- CAT III 600V
- Standards
- IEC 61010
- Storage Temperature Range
- -25 - 70°C
- Supplied With
- 2 Wire Test Lead Set, Switched Test Probe, Calibration Certificate and Carry Case
- Type
- Insulation and Continuity Tester
- Unspsc V18
- 41113624
- Unspsc V24
- 41113624
- Video Url
- https://www.youtube.com/embed/1chUDldhhSE
- Weight
- 2.40000kg
- Width
- 203mm
